Description

DLC-T: galvanised steel frame th.

• galvanised steel blade
• outer silicone seal applied on the blade
• Drive shaft Ø 8 / 12 mm
• bronze bearings for shafts Ø 8 mm (-50°C / +200°C)
• Nylon bearings for shafts Ø 12 mm (-20°C / +70°C)
• Leakage class 4/B EN 1751 up to 2000 Pa
• DIN 1946/4

Available execution

• Intermediate dimensions
• In AISI 304 stainless steel
• In AISI 316L stainless steel
• Frame special dim. <500 mm
• 8 mm casing return

DLCTE: like DLCT but with pair of external gaskets for duct assembly

ATEX execution: II 2G Ex h IIB/IIC T1…T6Gb
II 2D Ex h IIIC T 450°C…T 85°C Db (on request)

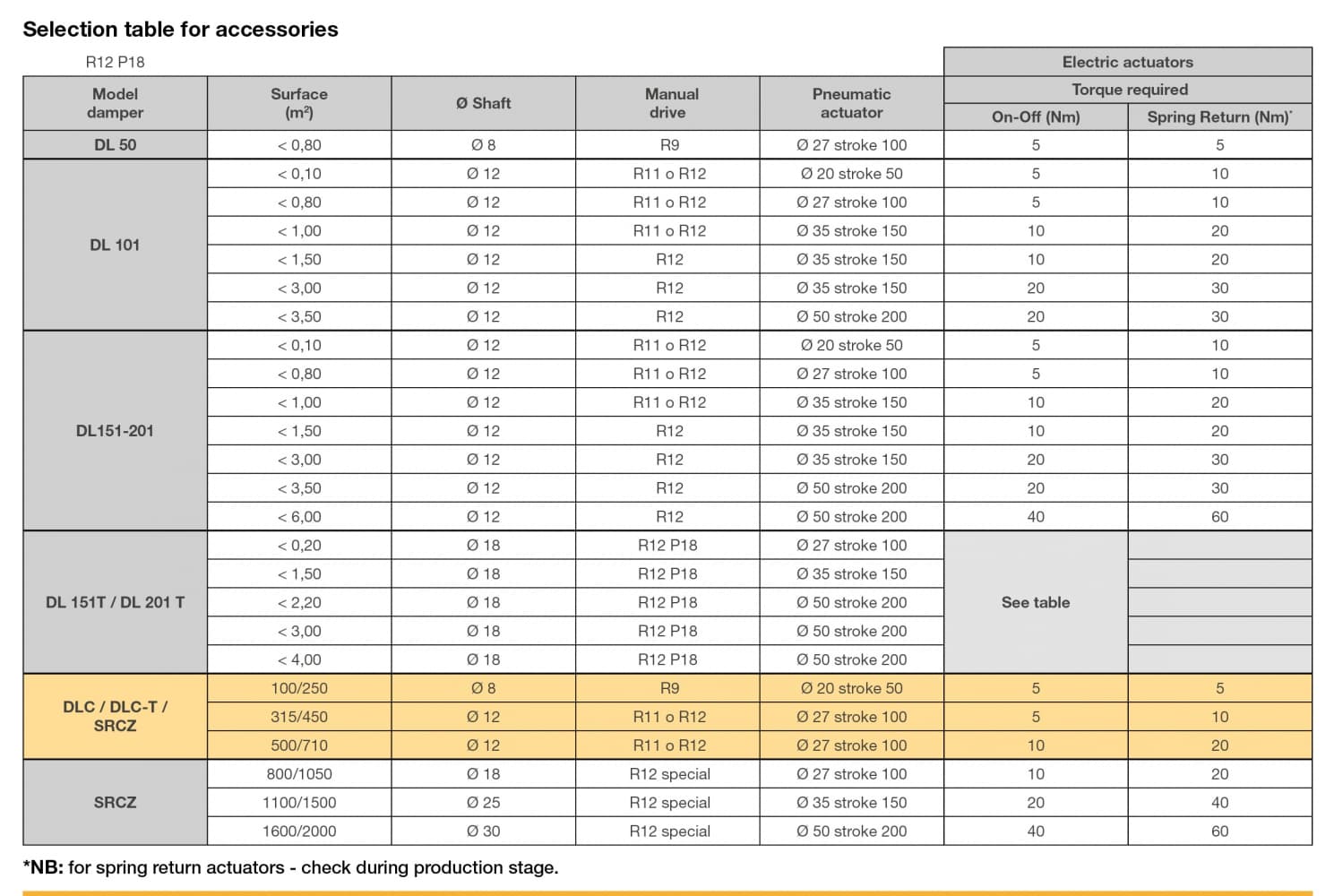

Accessories

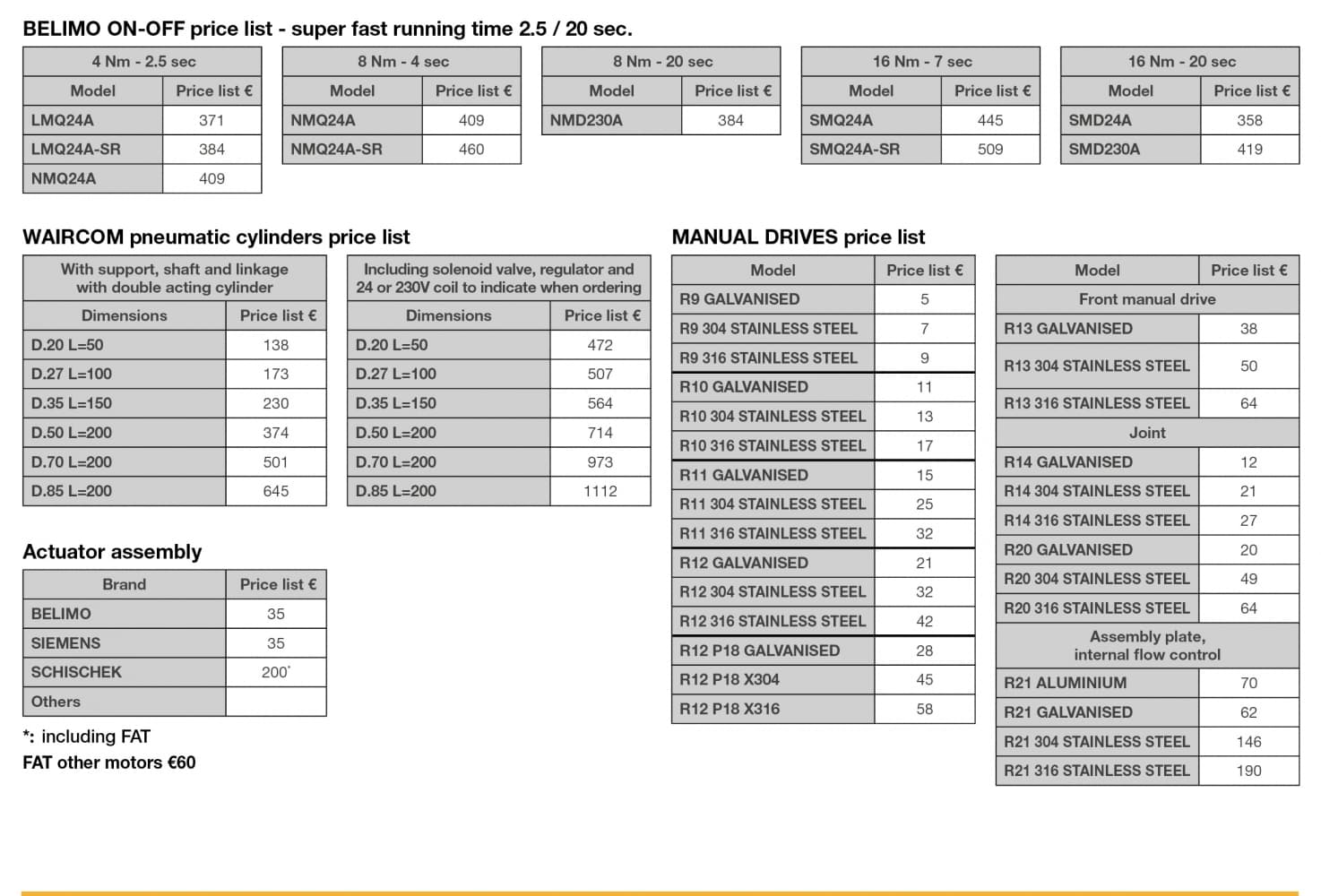

• Manual drive (R9 shaft Ø 8 mm, R11 shaft Ø 12 mm)

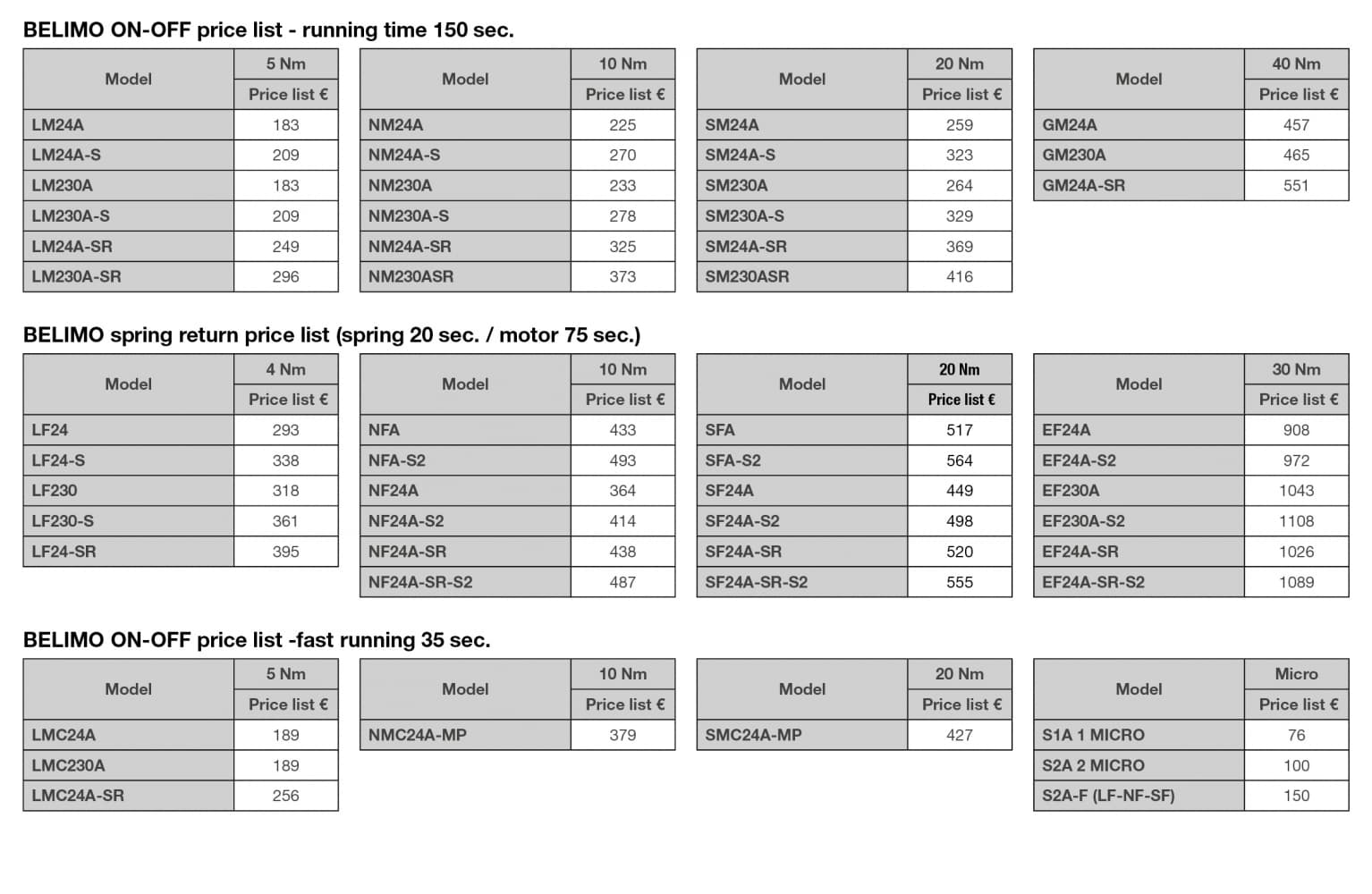

• Electric actuators/ Pneumatic cylinder

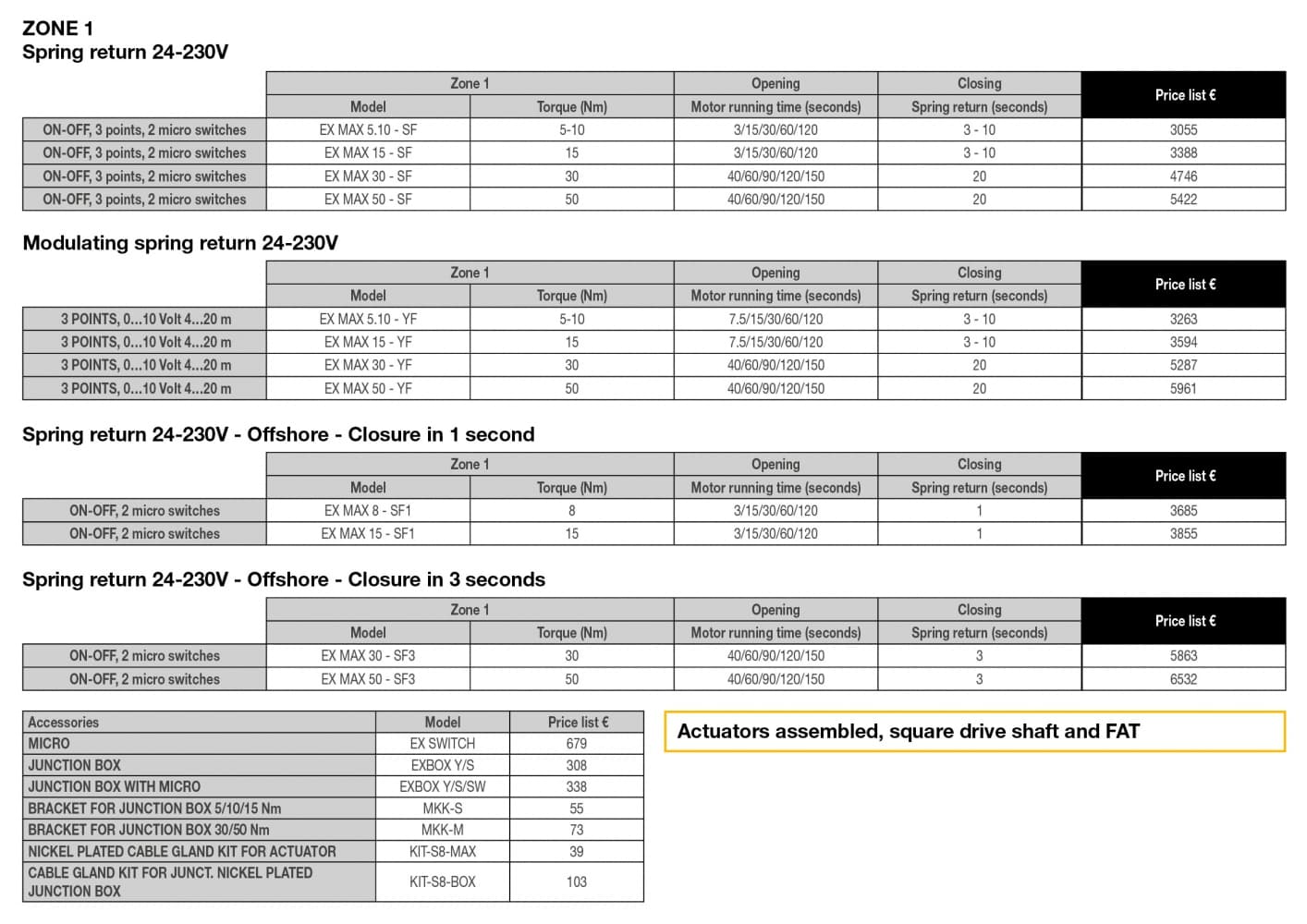

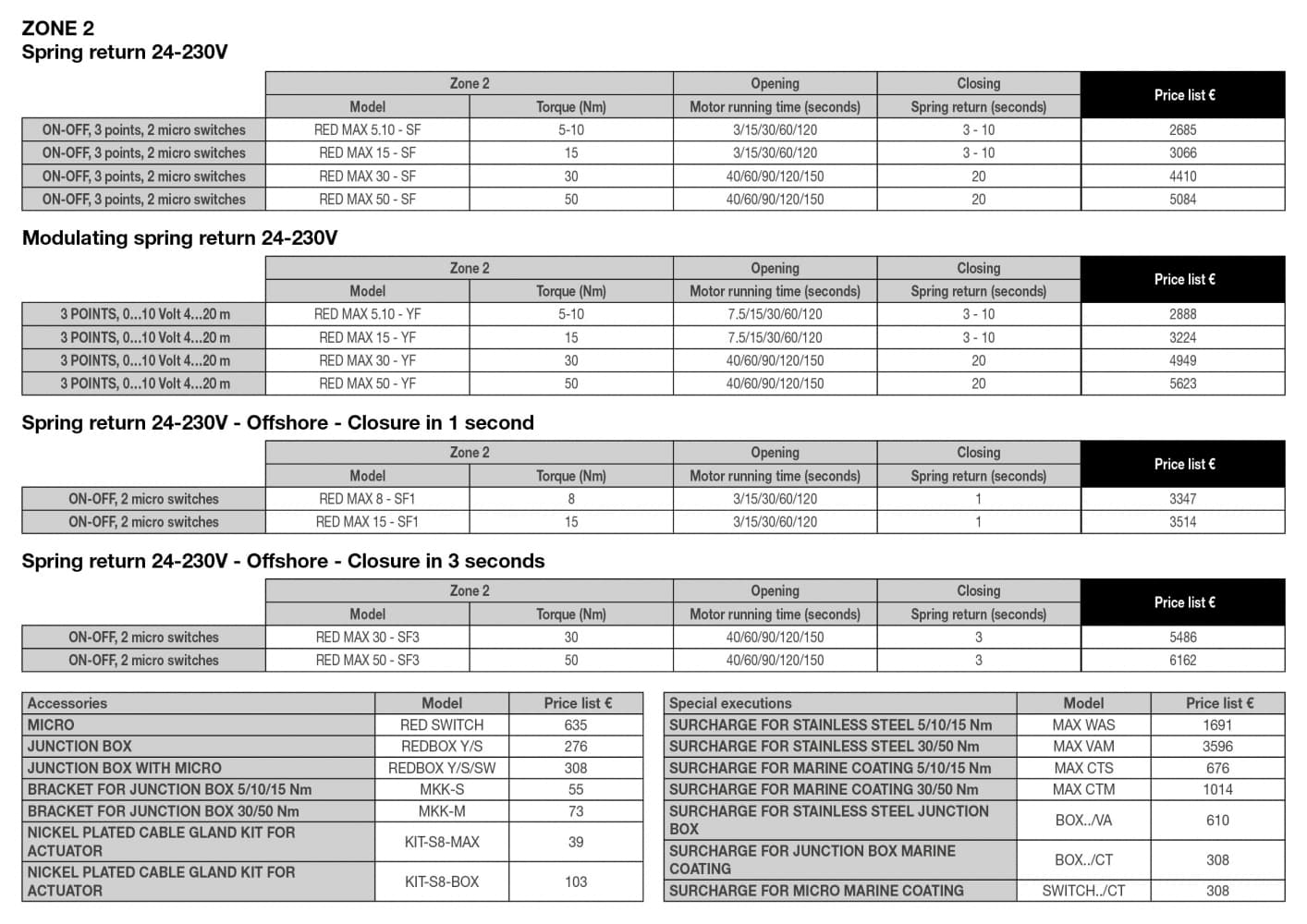

• Atex actuators
