Description

SRCZ: Galvanised steel frame th. 2 mm

• galvanised steel blade th. 2 mm
• metal perimeter seal
• for drive shaft diameter
• bronze bearings (-50°C / +200°C)
• flanges in black rustproof painted plate, not drilled

Available execution

• Intermediate dimensions
• Flange holes according to Eurovent
• Special flanges
• Version with riveted and welded blade
• Frame special dim. <500 mm
• Produced with th. 3/4/5 mm (on request)
• In AISI 304 stainless steel
• In AISI 316L stainless steel

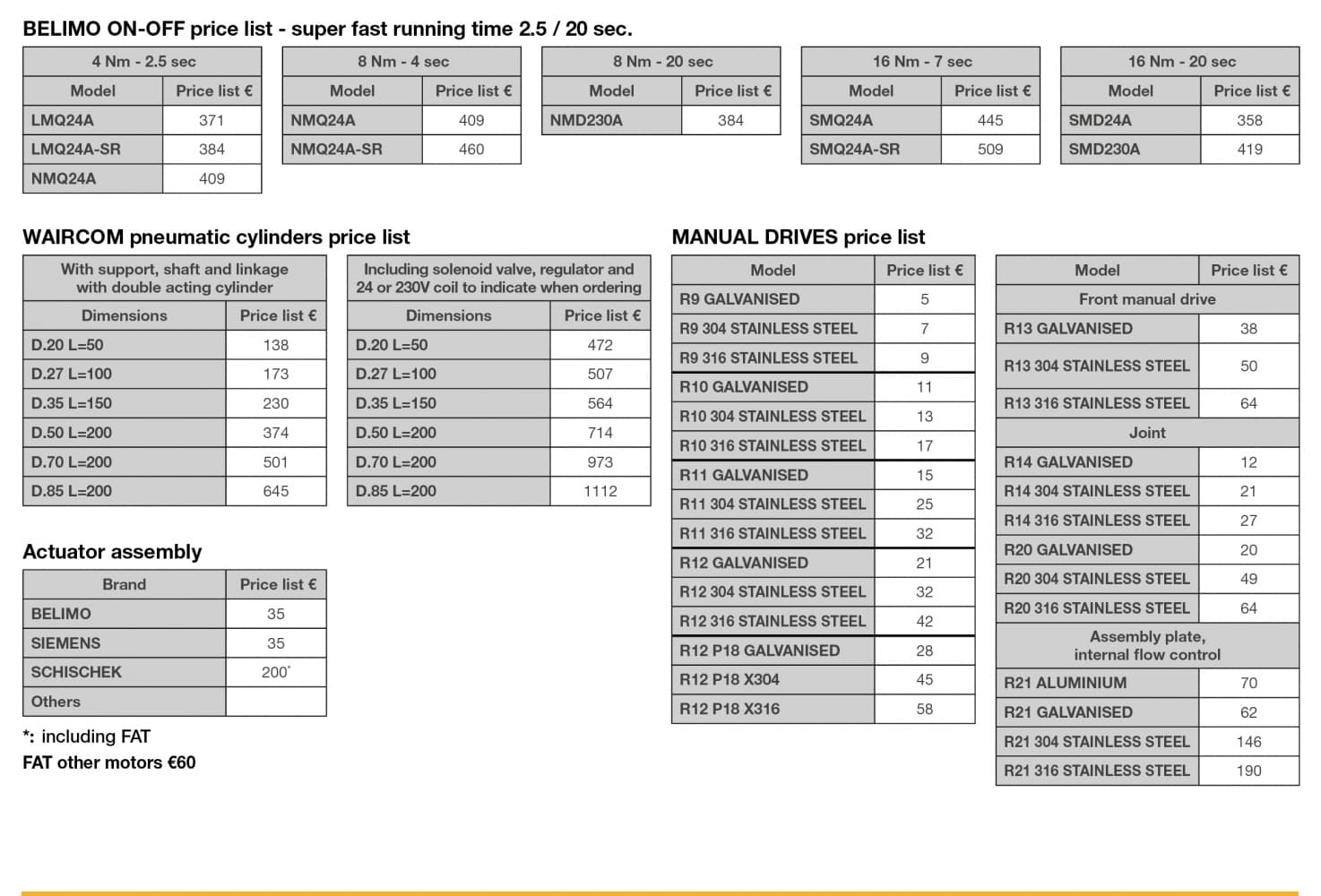

• R12 galvanised manual drive Ø 12 mm
• R12 galvanised manual drive Ø 18 mm

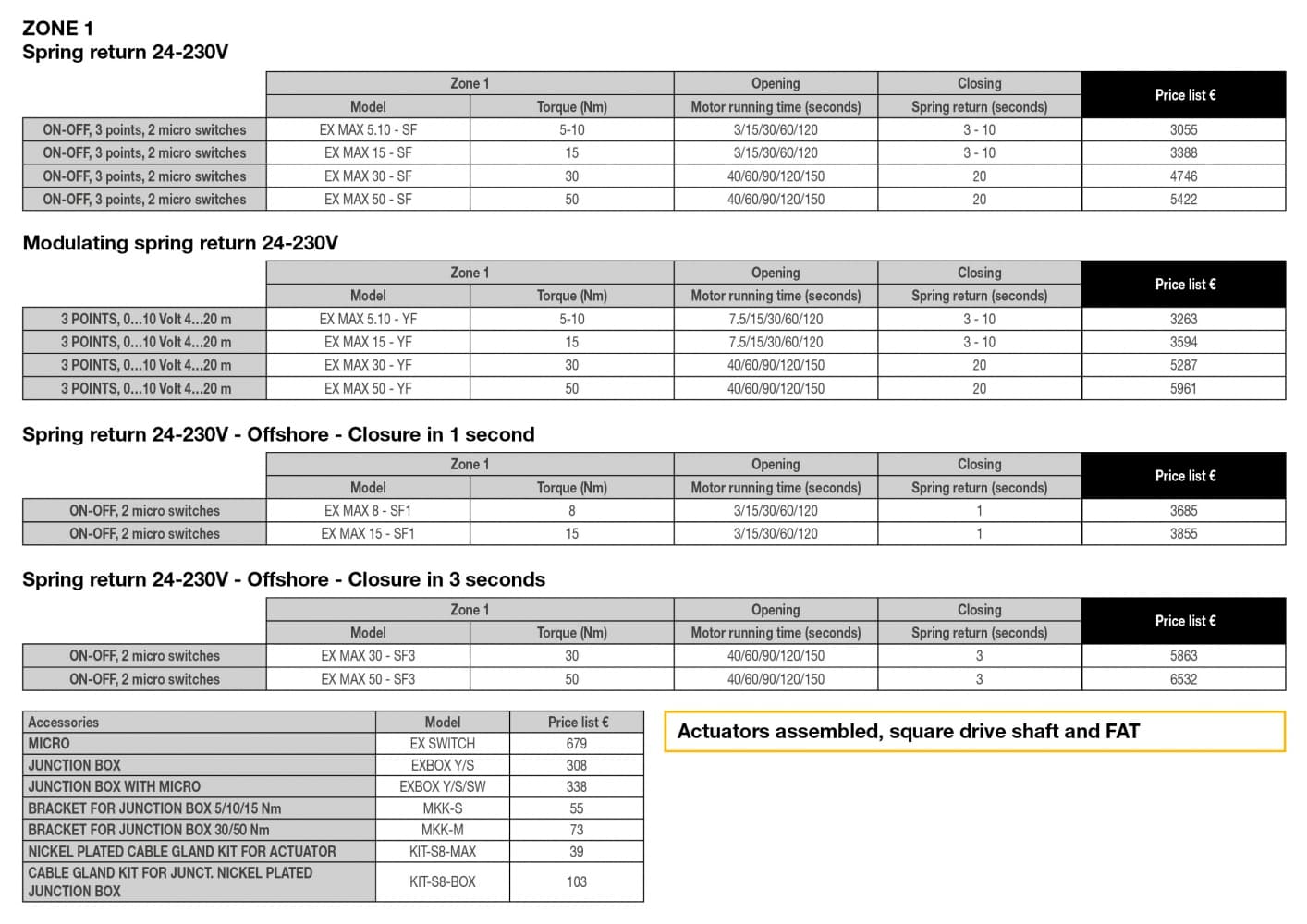

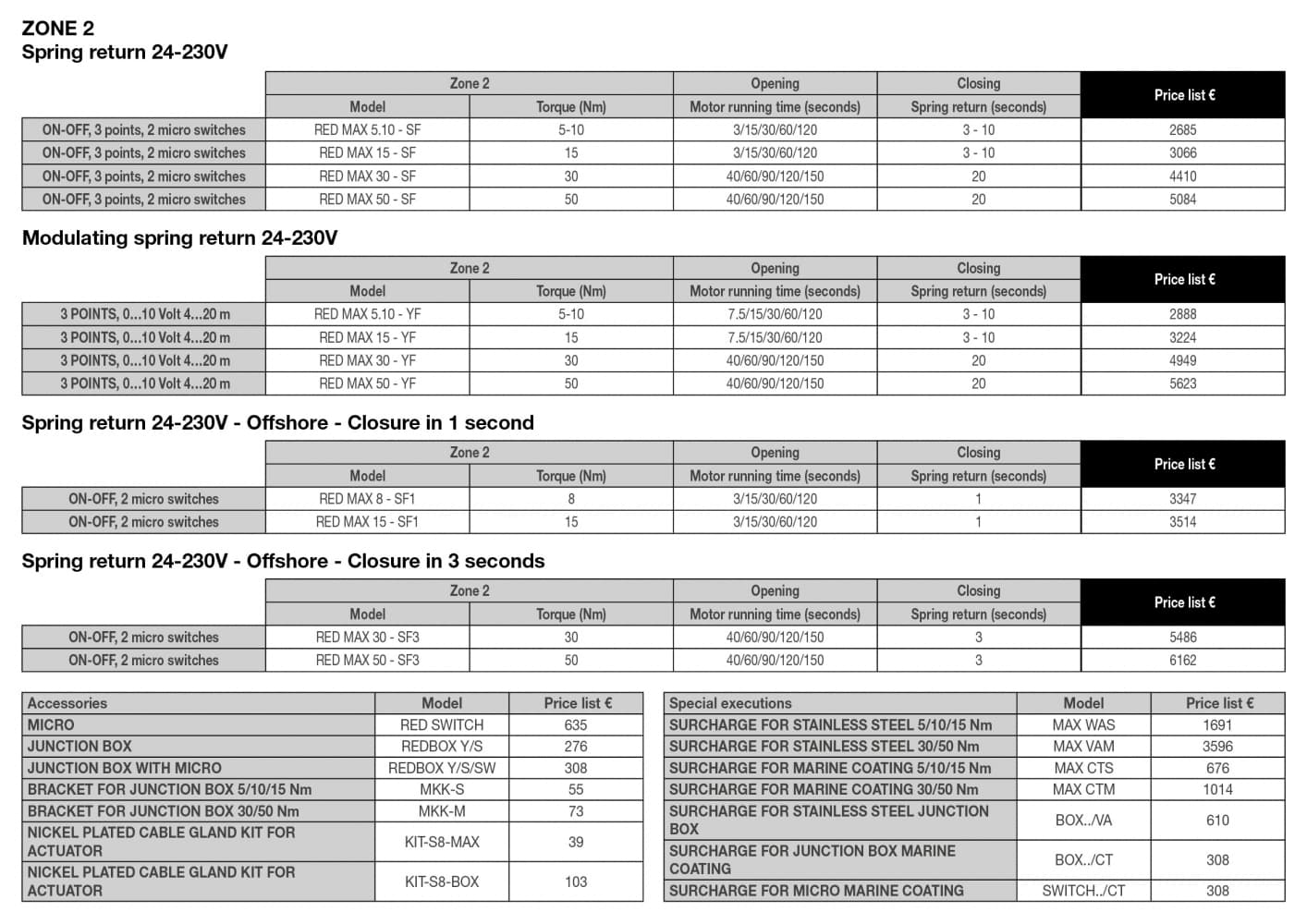

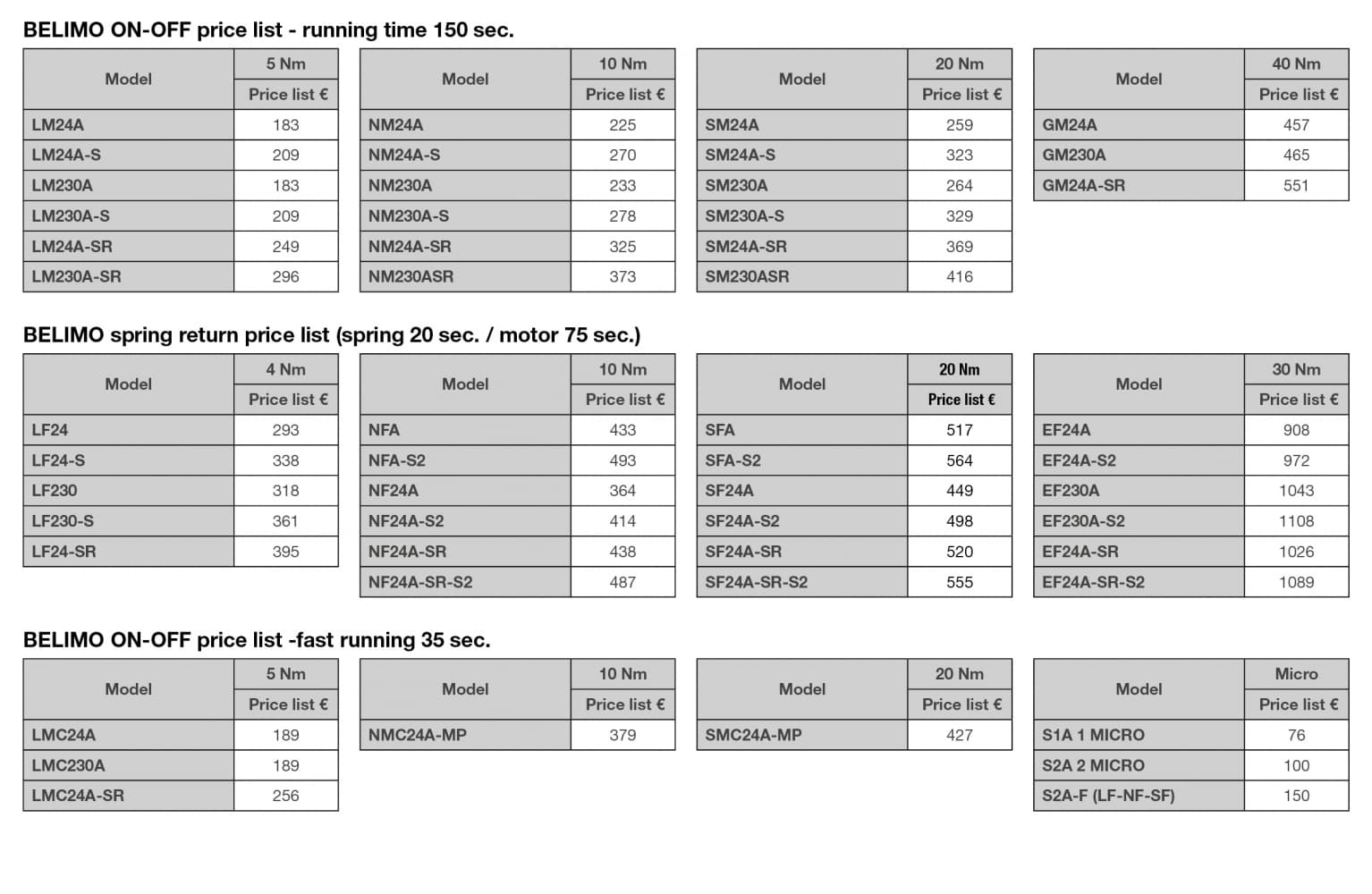

• Electric actuators/ Pneumatic cylinder
• Atex actuators
