Shut-off dampers in aluminium

DL151AT

Description

  • Natural extruded aluminium frame th. 1.5 mm continuous weld, depth 160 mm, 40 mm flanges with Ø 8 mm holes in the middle, pitch 300 mm
  • Wing blades in natural extruded aluminium th. 1.5 mm, pitch 150 mm
  • External control linkages in galvanised steel
  • Side seal with AISI 301 stainless steel
  • Sealing gasket on the silicone blades (-50°C / +200°C)
  • Drive shaft Ø 18 mm L = 100 mm
  • Bronze bearings, temp. -50°C / +200°C
  • Leakage class 4/C EN 1751 up to 2000 Pa
  • DIN 1946/4

Available execution

  • Intermediate dimensions

ATEX execution: II 2G Ex h IIB/IIC T1…T6Gb
II 2D Ex h IIIC T 450°C…T 85°C Db

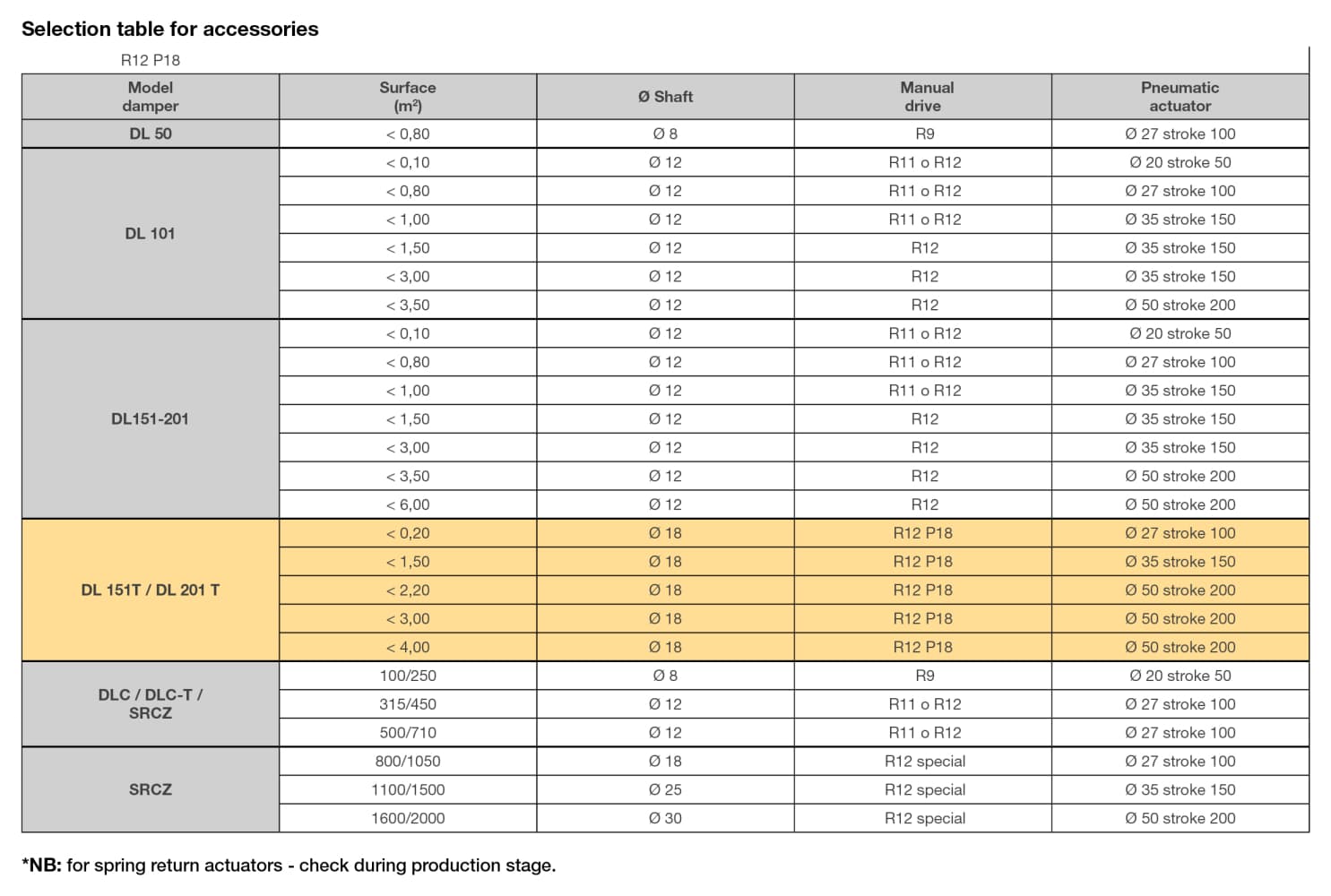

Accessories

  • R12P18 galvanised manual drive

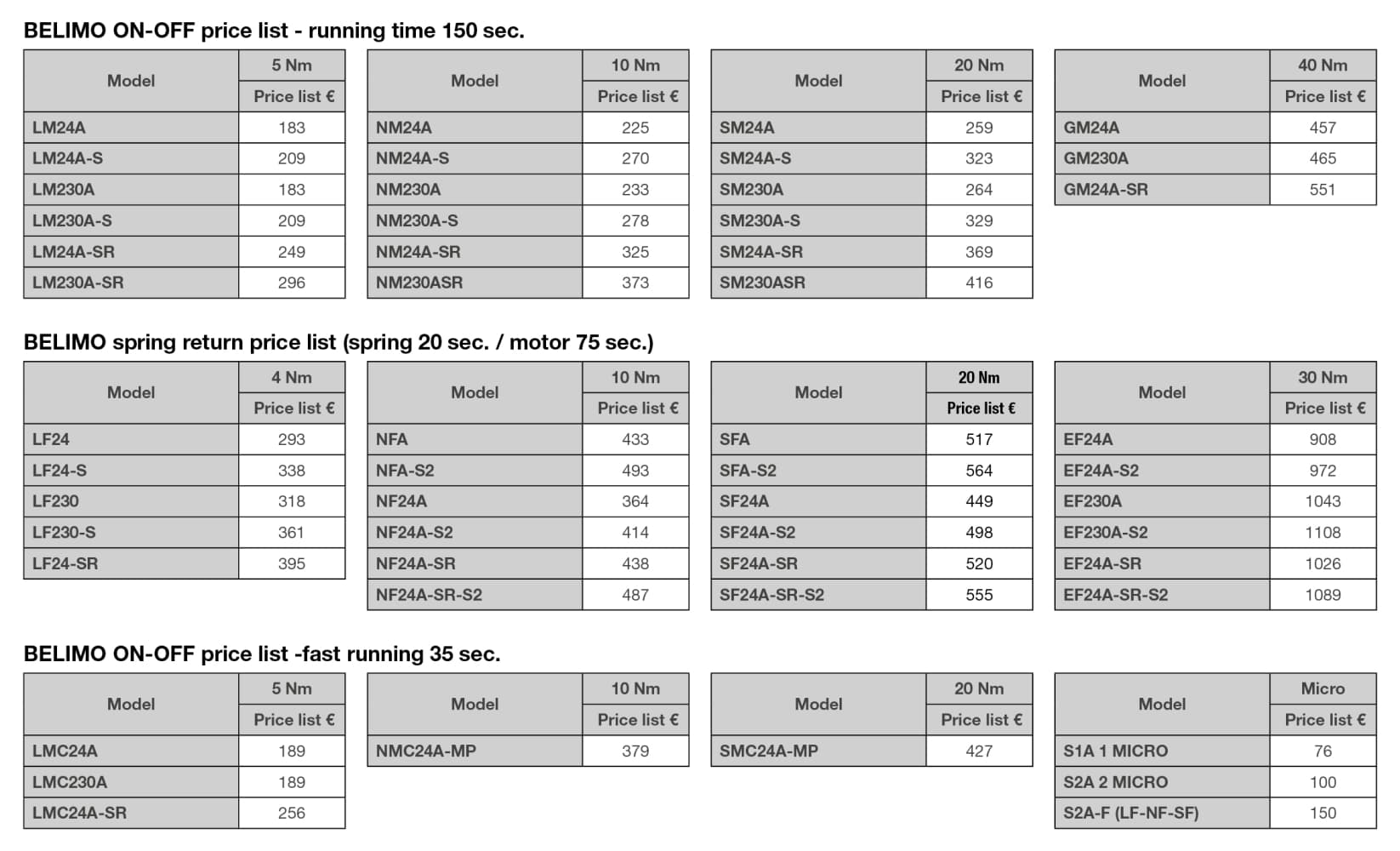

  • Electric actuators/ Pneumatic cylinder

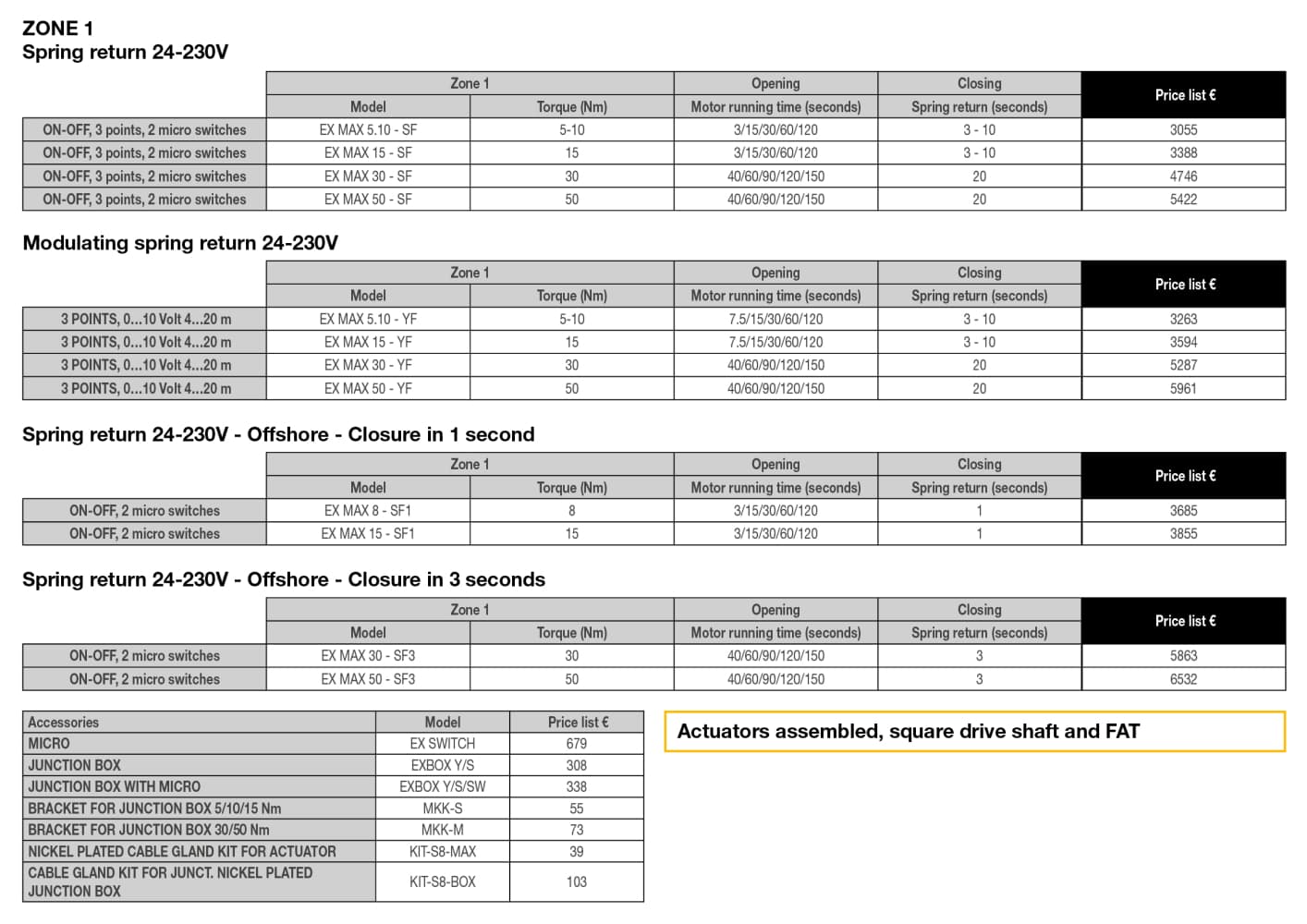

  • Atex actuators



All prices are list prices for local market, for a quotation please contact us.
