Description

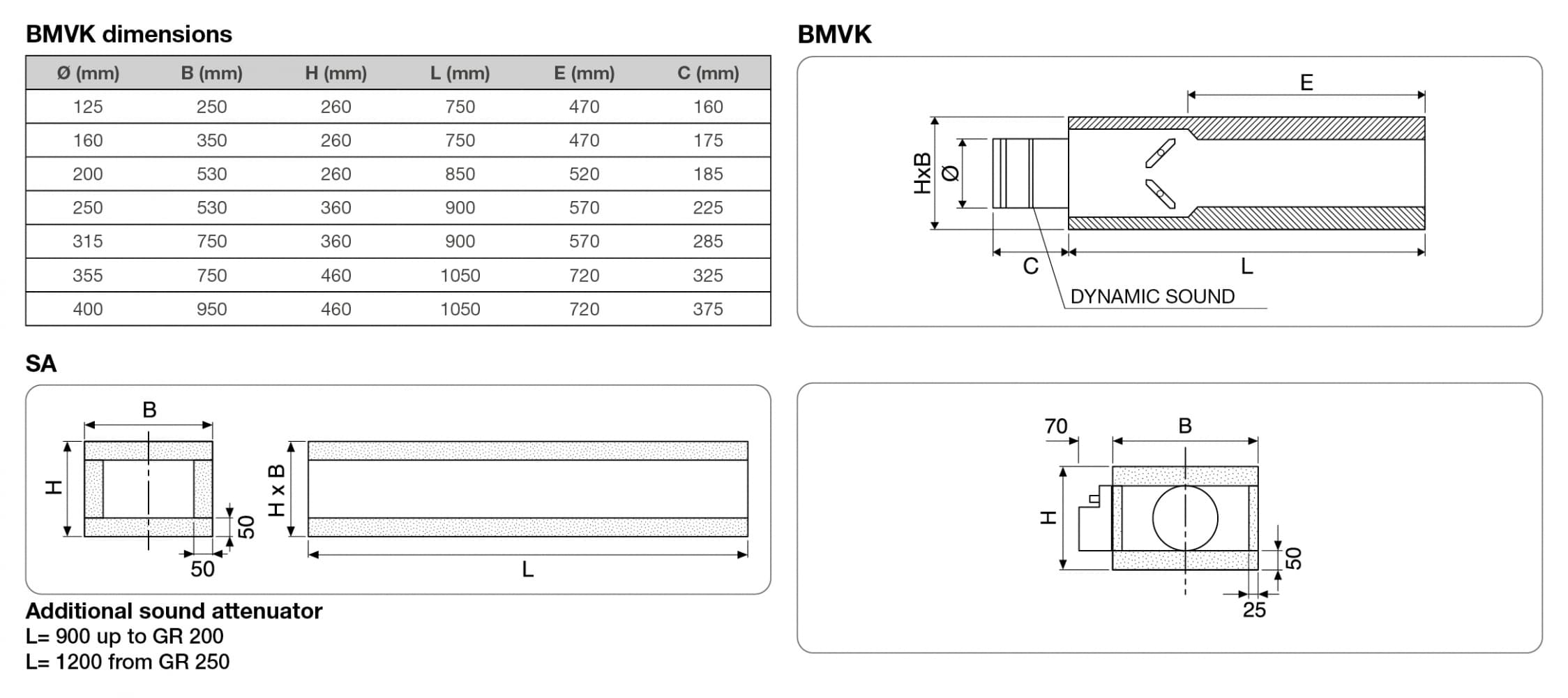

BMVK: single duct box with variable flow in compact version

• casing in galvanised steel suitable for tie rod assembly
• Leakage damper according to DIN 1946/4 - Class 4 EN 1751
• Acoustic double-density rock wool material lined with black glass veil, fire-resistance M0; A1 according to EN 13501-1
• dynamic ∆p probe for measuring and maintaining the required flow rate
• operating range from 20 to 1500 Pa
• flow adjustment and control with dedicated compact VAV actuator

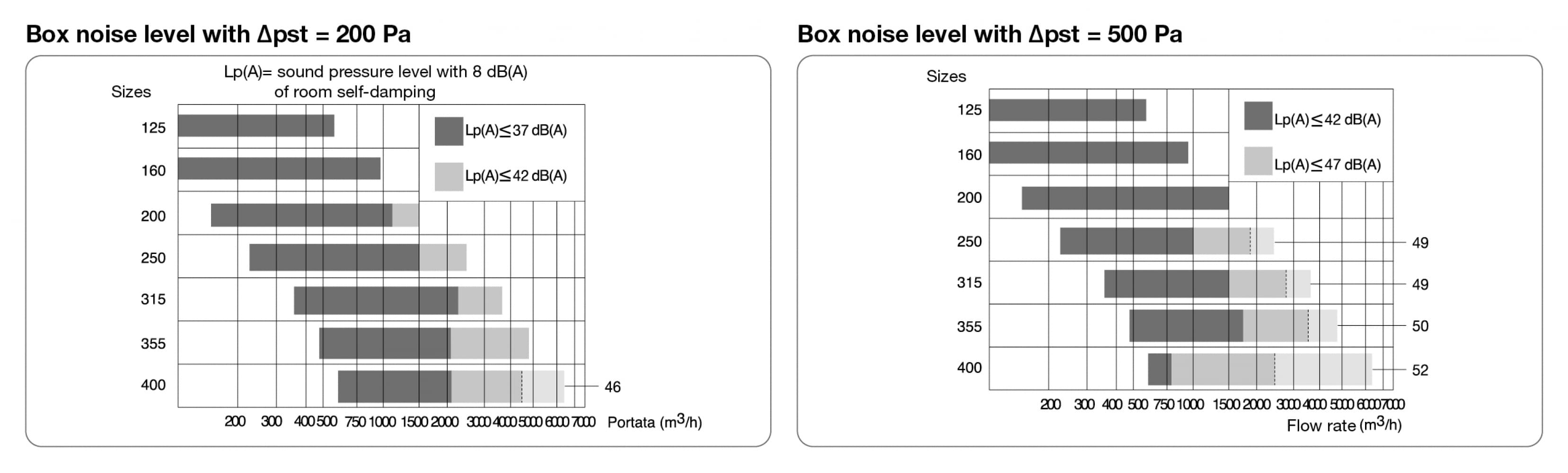

• acoustic tests according to UNI EN 23741

Accessories

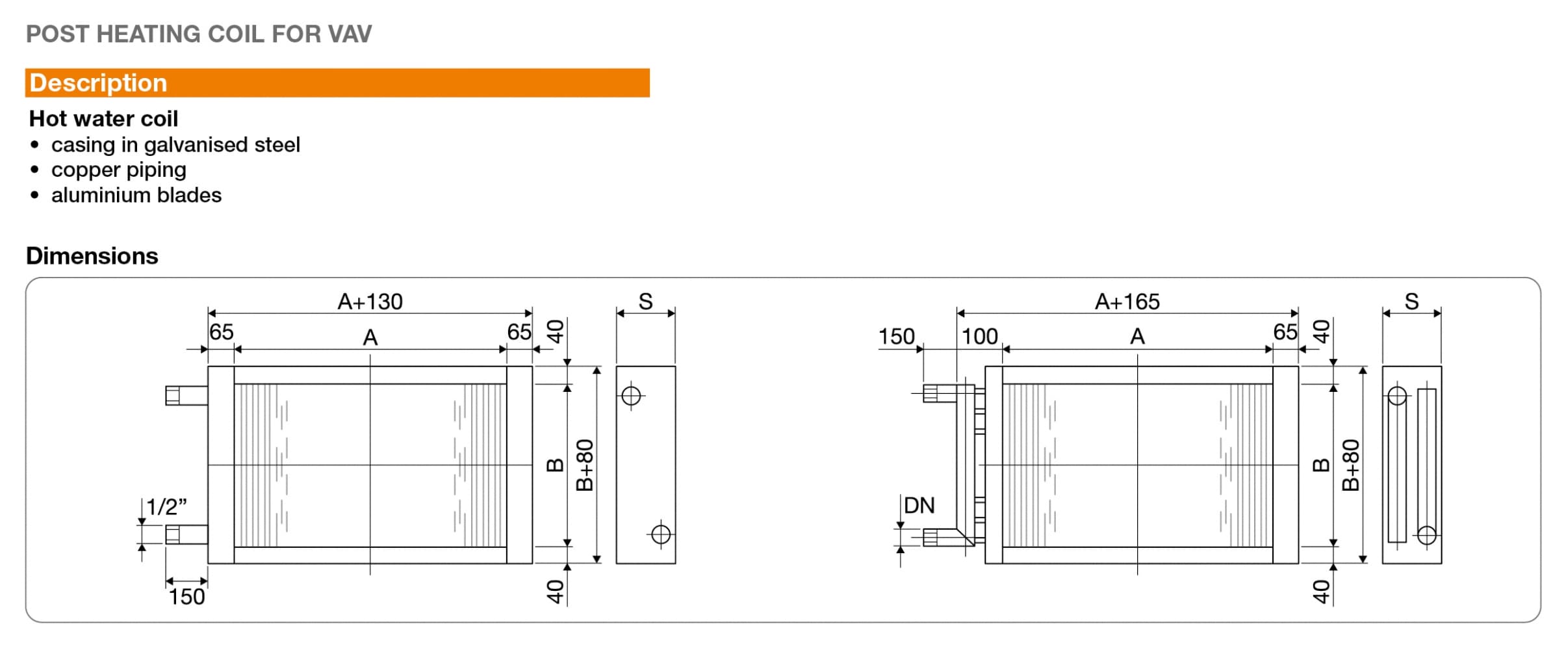

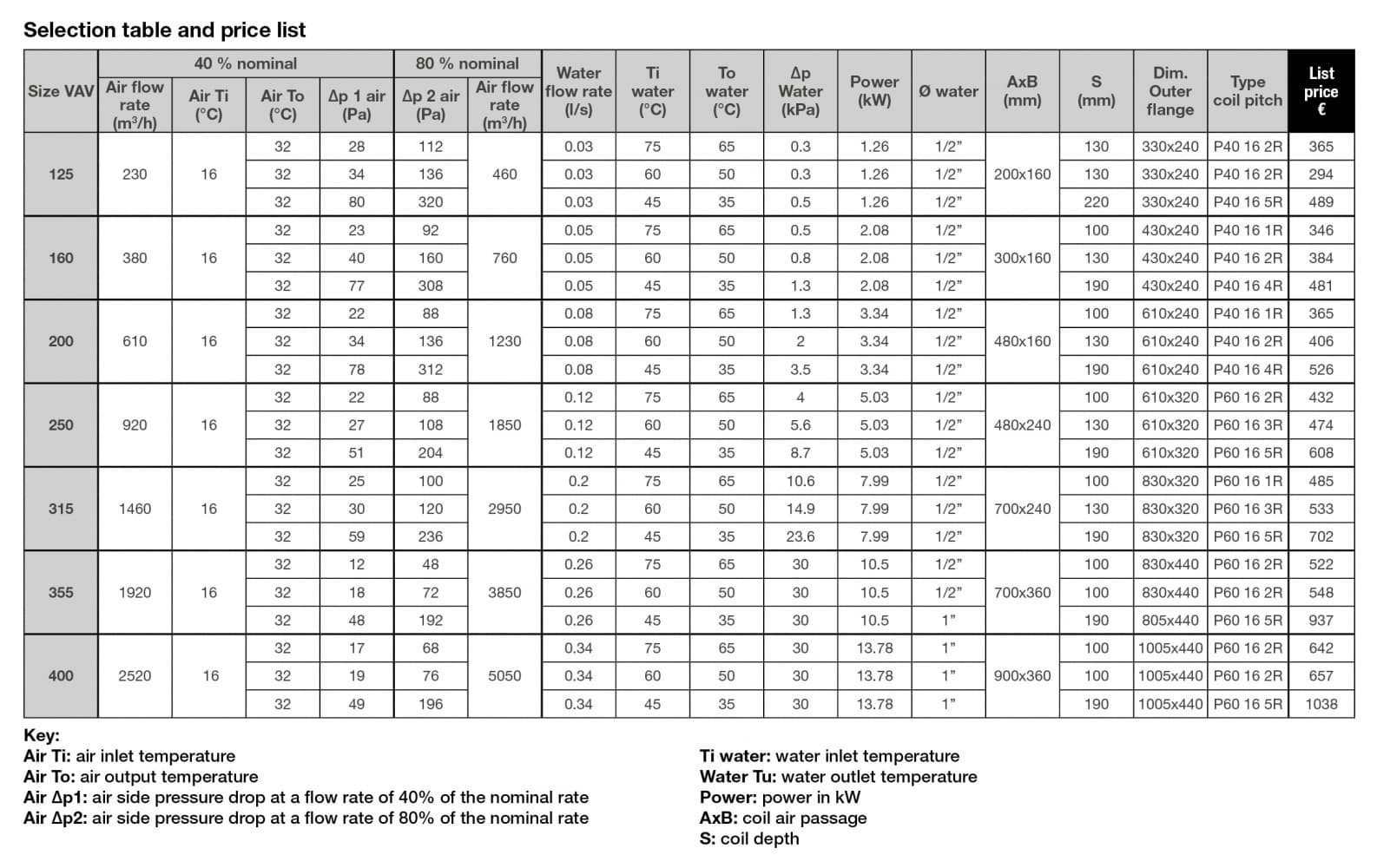

BAC2RR: water post-heating coil

BAE: electric post heating coil (on request)

SA: additional sound attenuator

SA-HY OSPEDALIERO: additional airtight sound attenuator with VDI 6022 glass tissue cover

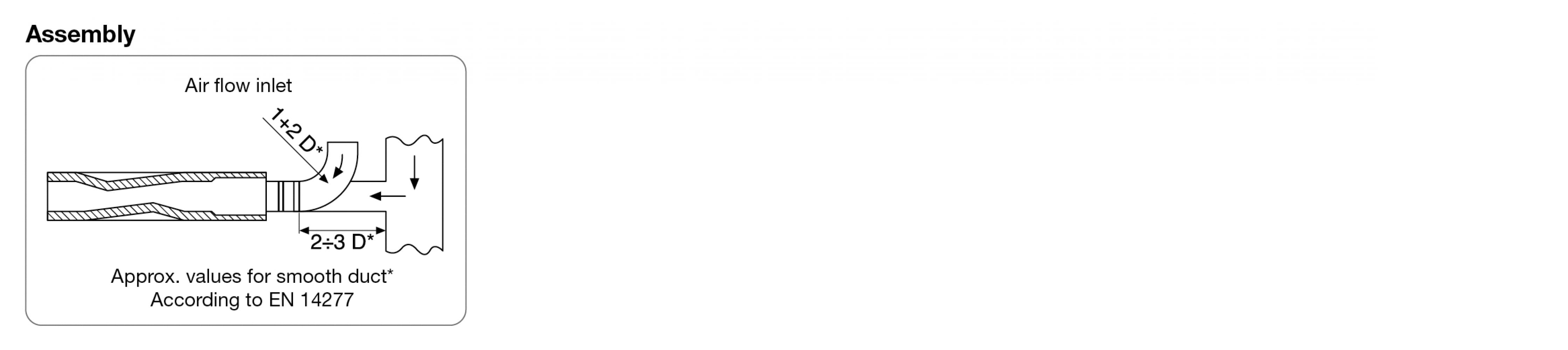

RF: wire equaliser for assembly near curve or junction box (on request)

Executions

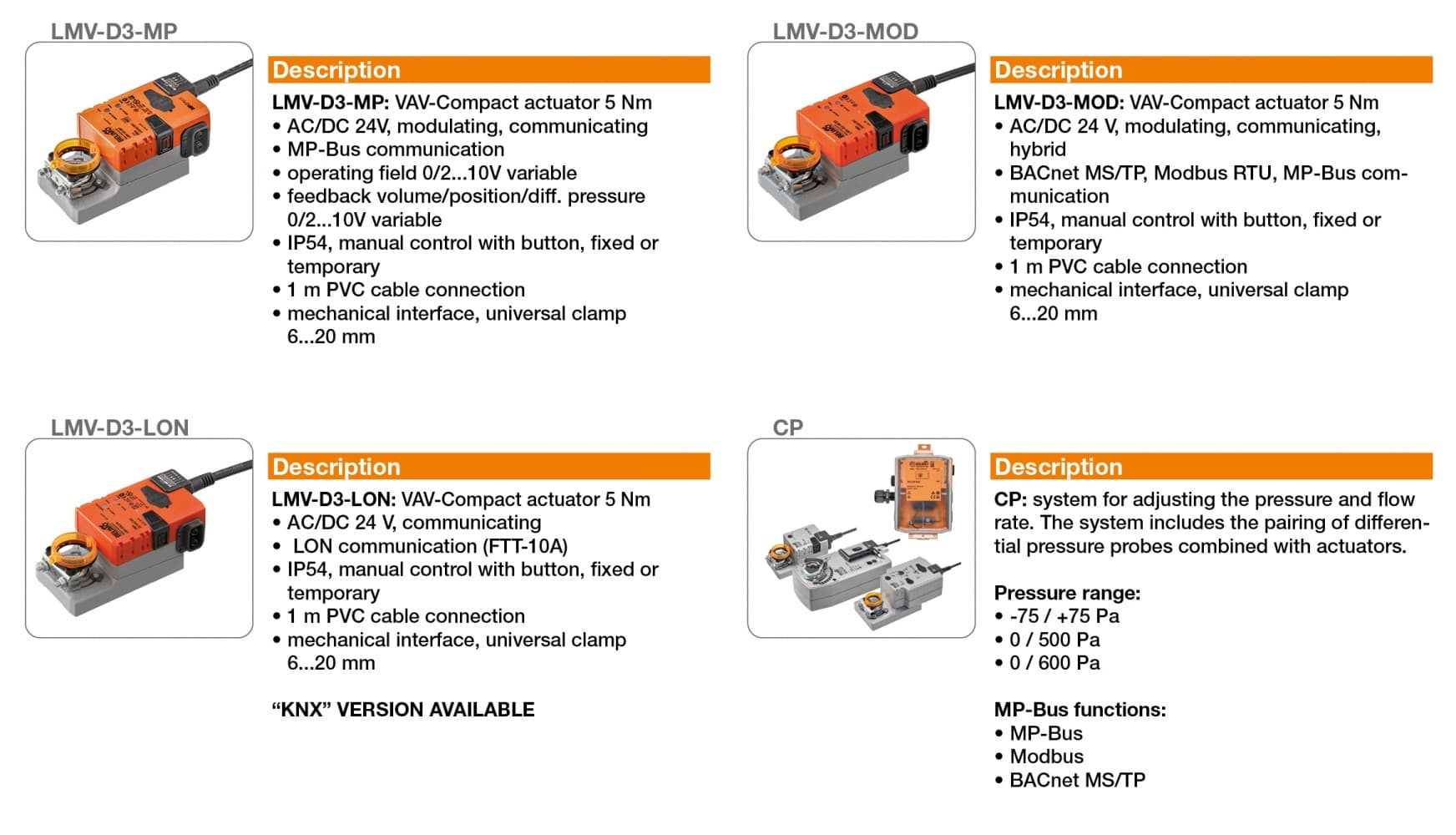

BMVKB: with Belimo actuator LMV-D3-MP

BMVKBLON: with Belimo actuator LMV-D3-LON

BMVKBMOD: with Belimo actuator LMV-D3-MOD

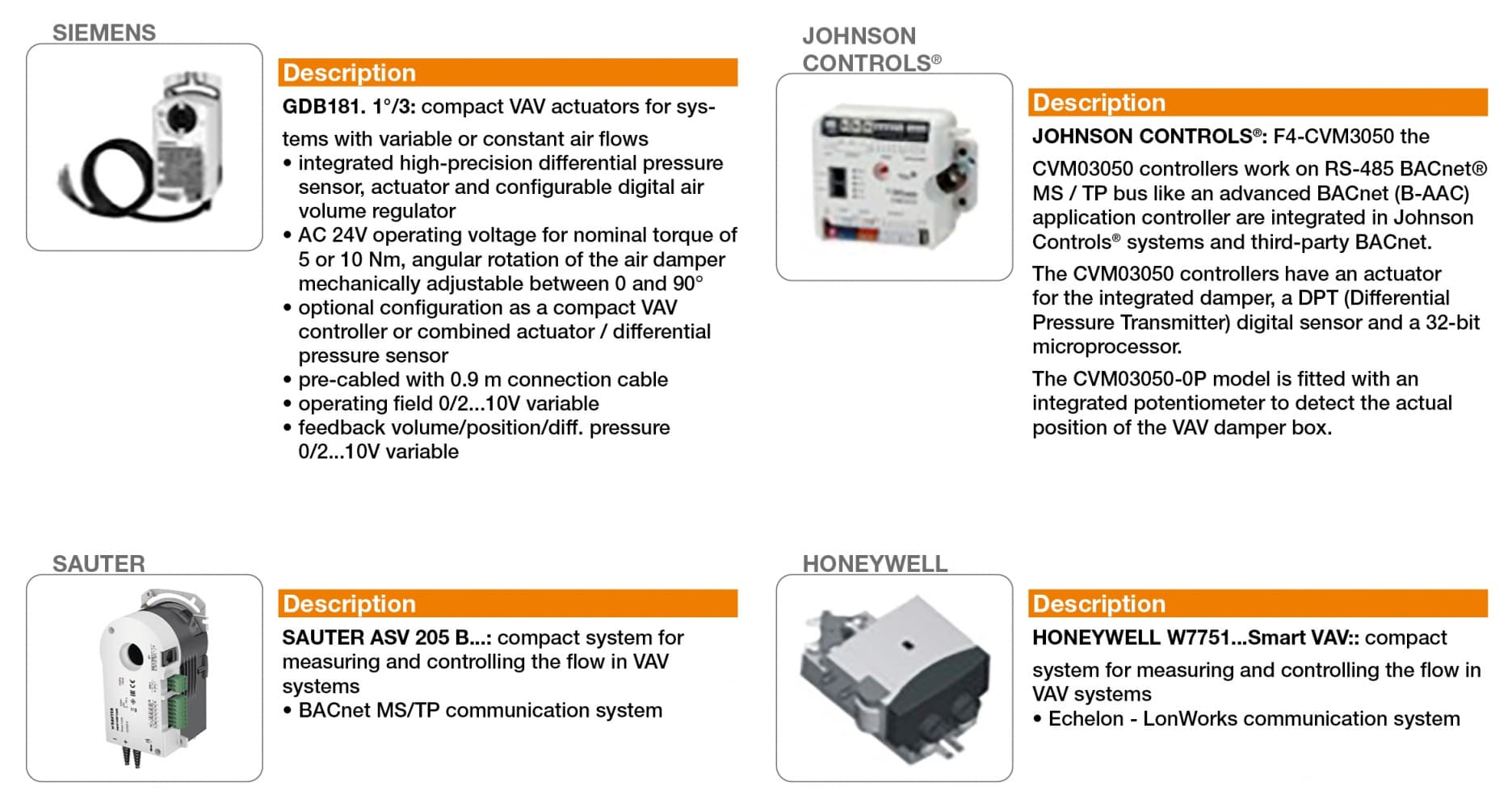

BMVKSM: with Siemens actuator GDB181.1E/3

BMVK...JH:with JOHNSON CONTROLS actuator with integrated DDC controller (BACnet MS/TP) - F4-CVM

BMVK...STE: with Sauter actuator

BMVK...LL: with HONEYWELL actuator with integrated controller

BMVK...HY: made with VDI 6022 certified hygienic standard acoustic material
line with glass tissue

BMVK...CP: to check room or duct pressure (on request)

BMVK...I: double casing (B+100 x H+100)

BMVK...A: execution for return

BMVK...R: with micro-expanded mesh (on request)

BMVK... : with fast actuator (on request)
