Description

RCC: circular CAV units

• casing in galvanised steel
• galvanised steel adjustment blades with system to control the oscillations, stainless steel rotation shafts on special bearings
• operating range from 50 to 500 Pa
• velocity working range from 2 to 10 m/s
• operating temperature between -20°C and +70°C
• tolerance ± 10% (up to 100 m³/h: ± 10 m³/h fixed)
• horizontal or vertical assembly
• optional recalibration on worksite

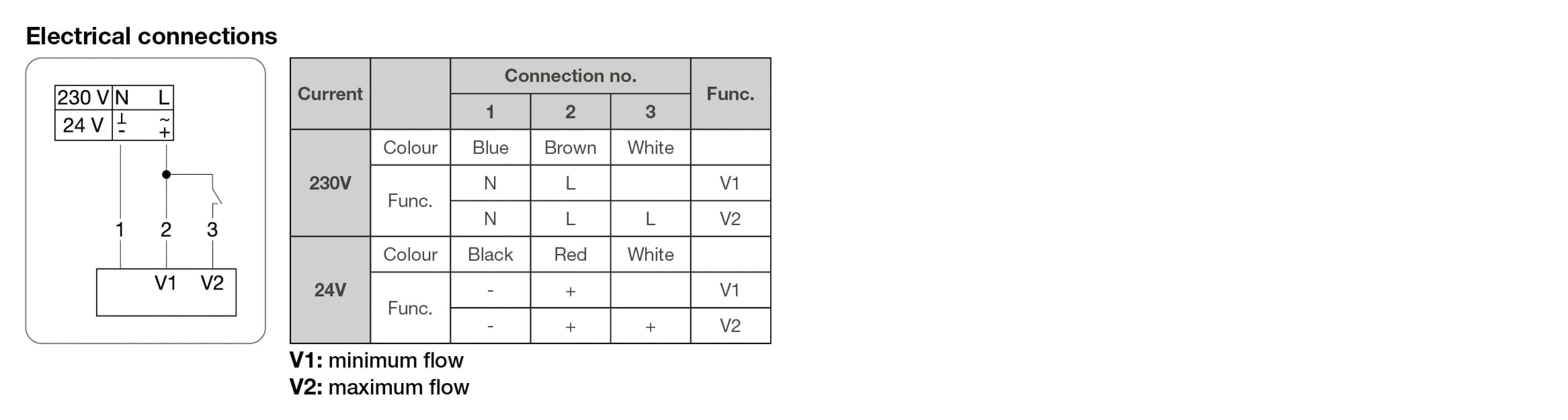

RCC...230: like RCC but with 230V actuator for operation with two flows

RCC...24: like RCC but with 24V actuator for operation with two flows

RCC..I: with insulated casing

Assembly

• Plug-in sound attenuator L = 1000 mm

Assembly:

• install a straight duct section of at least 5xD upstream if connected with hammer release; if connected to rigid duct R min 1.5D
