Description

RED: Circular CAV unit

• made of class M1 plastic
• control unit with spring and shock absorber piston
• maximum temperature up to 60°C
• operating range from 50 to 200 Pa
• tolerance ÷10%

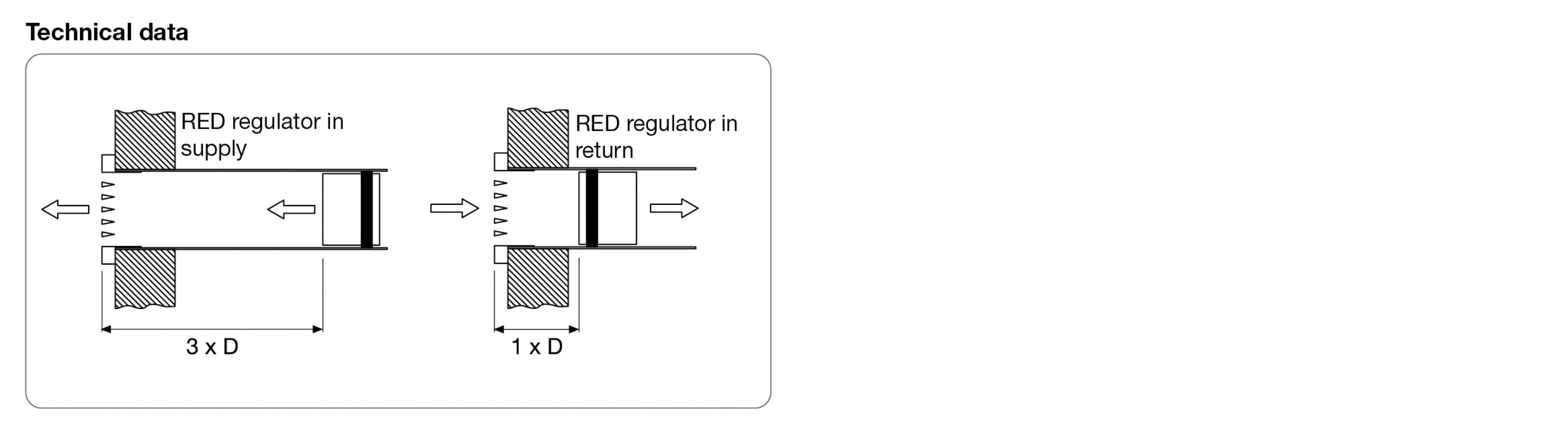

• horizontal or vertical assembly

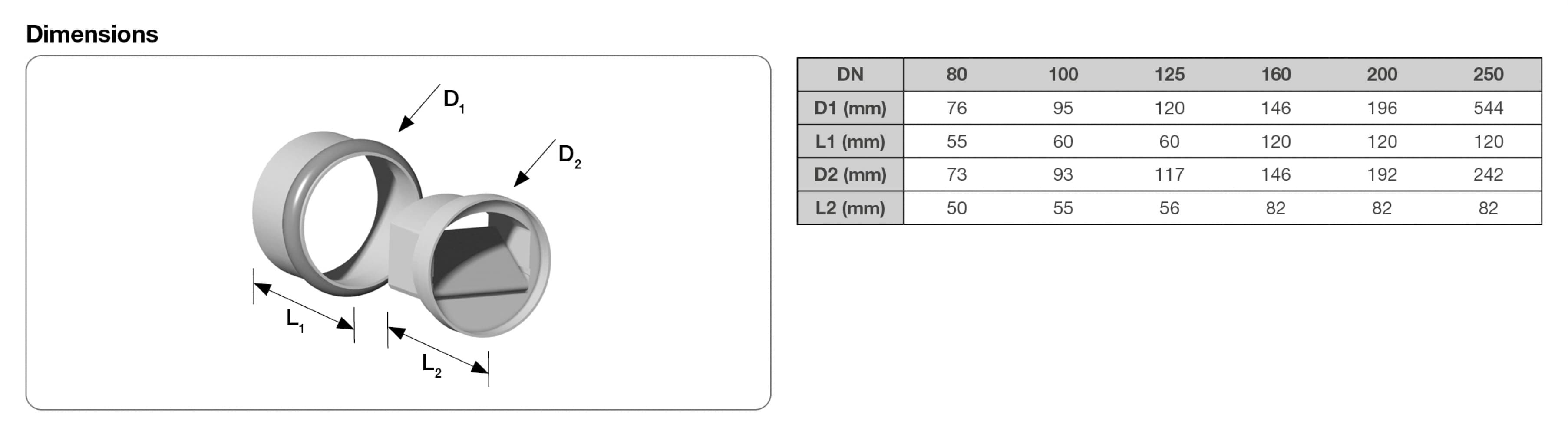

• sizes from 80 to 250 mm

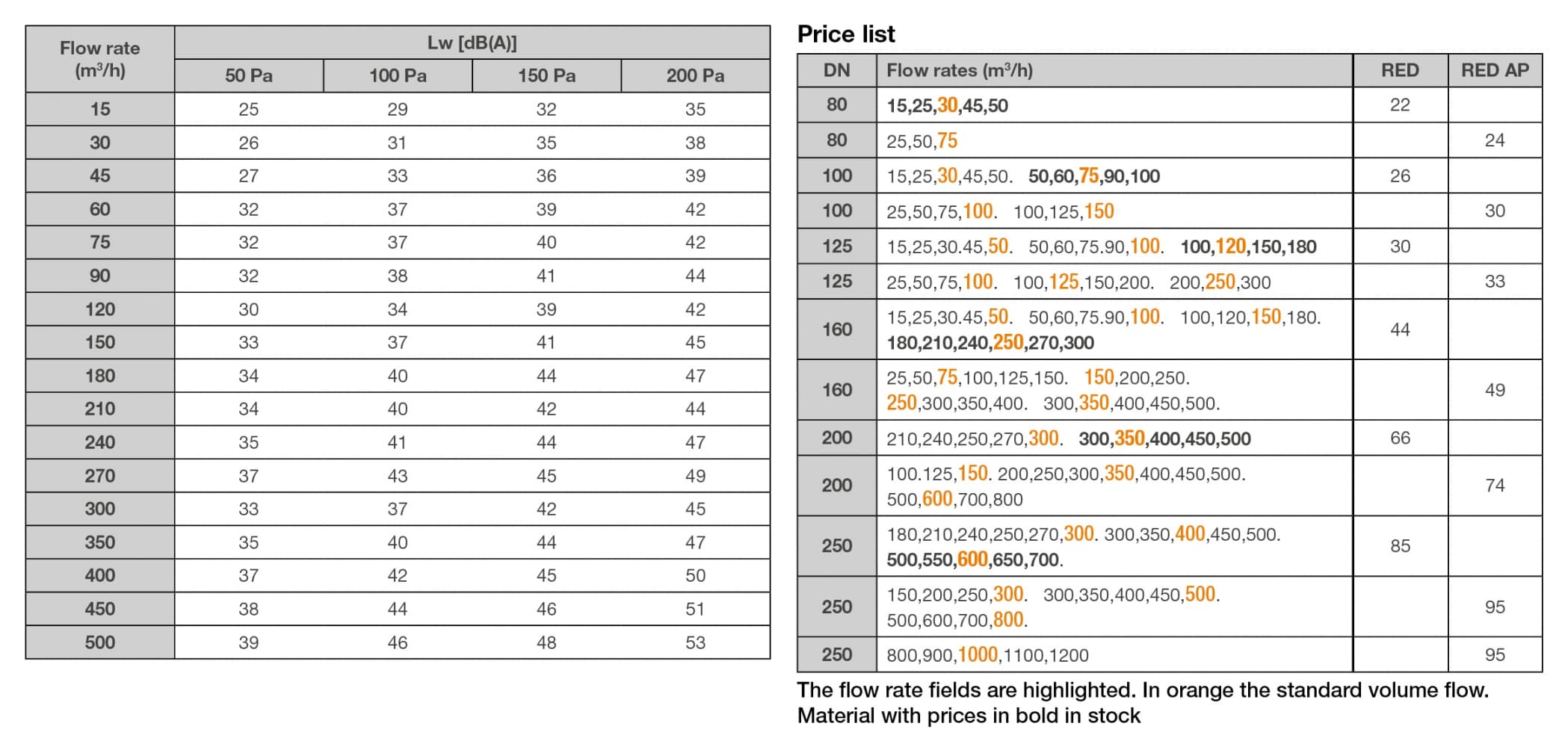

• flow rates from 15 to 700 m³/h factory set

Special Executions

RED-AP: like RED but with operating range from 150 to 600 Pa

• flow rates from 50 to 1200 m³/h factory set
