Description

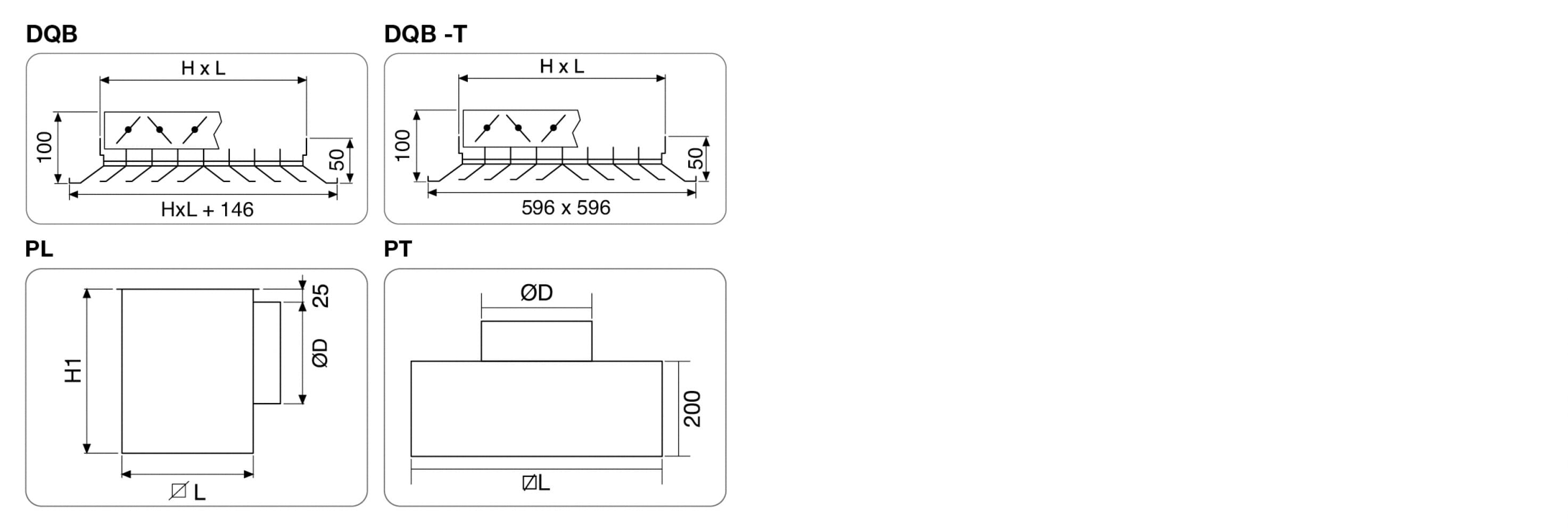

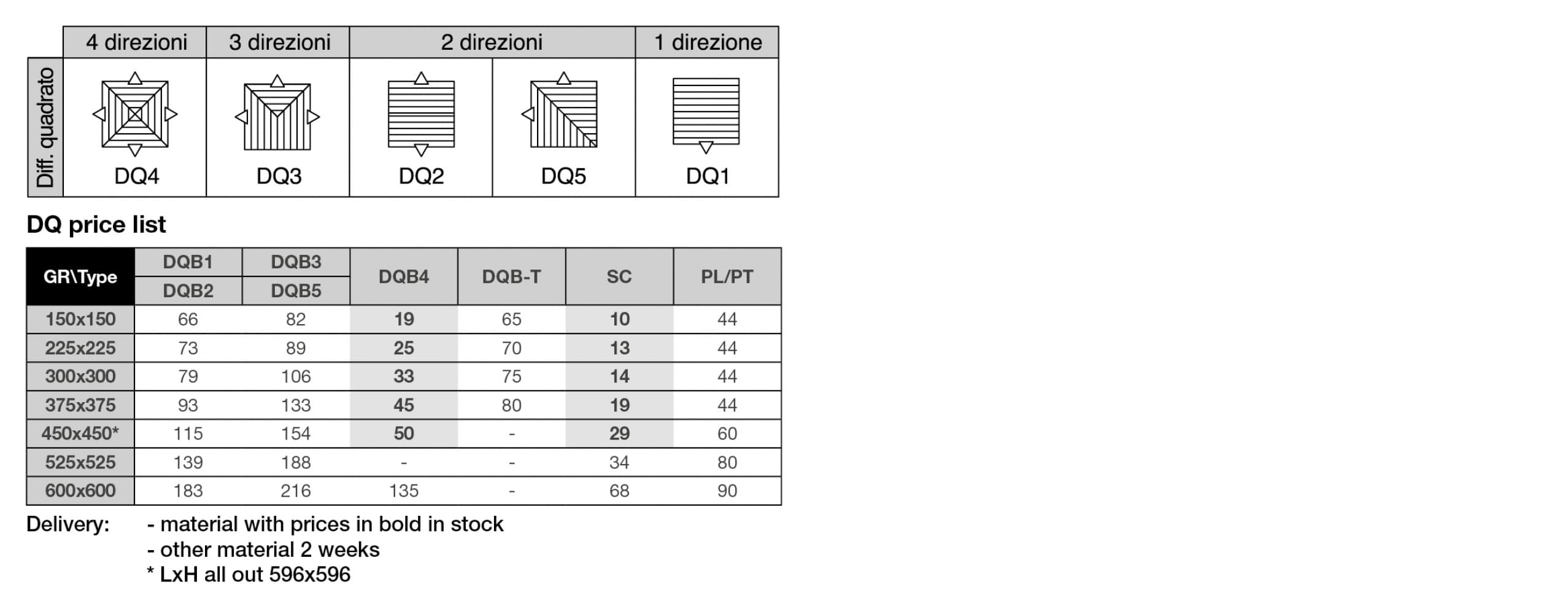

DQB: multidirectional diffusers

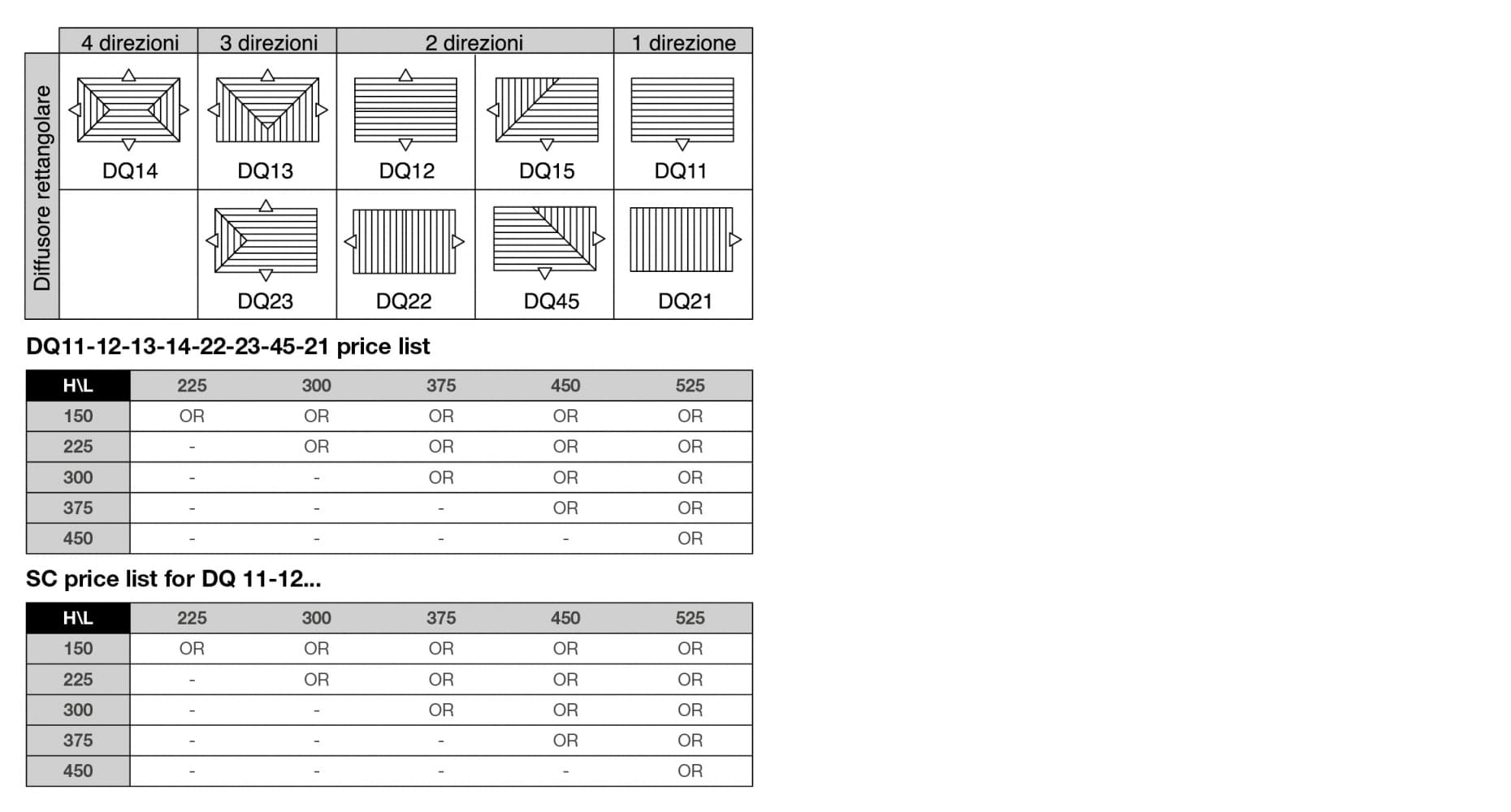

• square or rectangular diffusers with 1-2-3-4 throw directions
• removable central cone
• made of aluminium with RAL 9010 finish

DQB4: multidirectional 4-way diffusers

• removable central cone
• made of aluminium with RAL 9010 finish

DQB-T: like DQB but with 596x596 panel (LxH from 150 to 375)

Accessories

SC: control damper

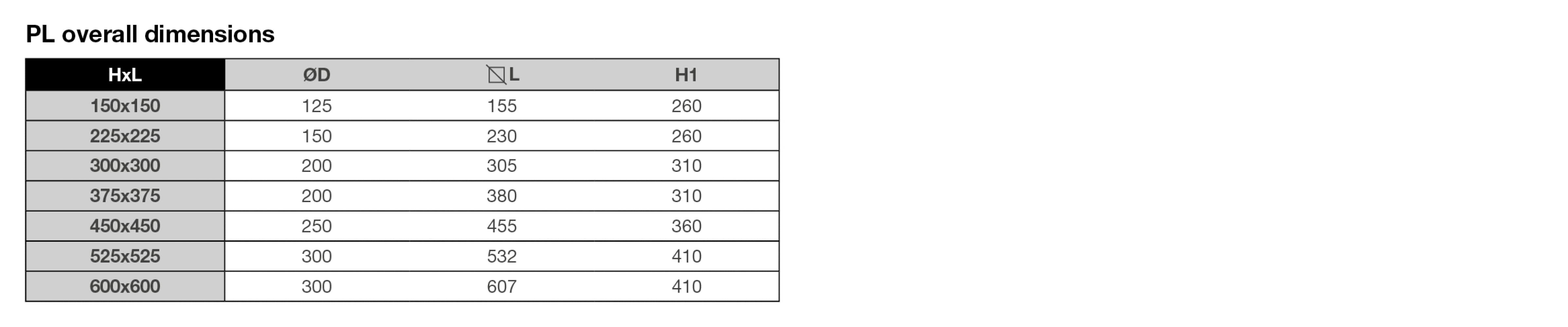

PL: side entry plenum

PT: upper entry plenum - H1 = 200 mm

S: damper for plenum

I: external insulation reaction to fire class B-s2-dO

PPLIS: pyramid plenum only for dim. 450x450 or for DQB-T with double bracket

Special version

DQ-R: with adjustable blades (on request)

VR: coating according to RAL 9005 / 9006 table

Other RAL colours on request
