Description

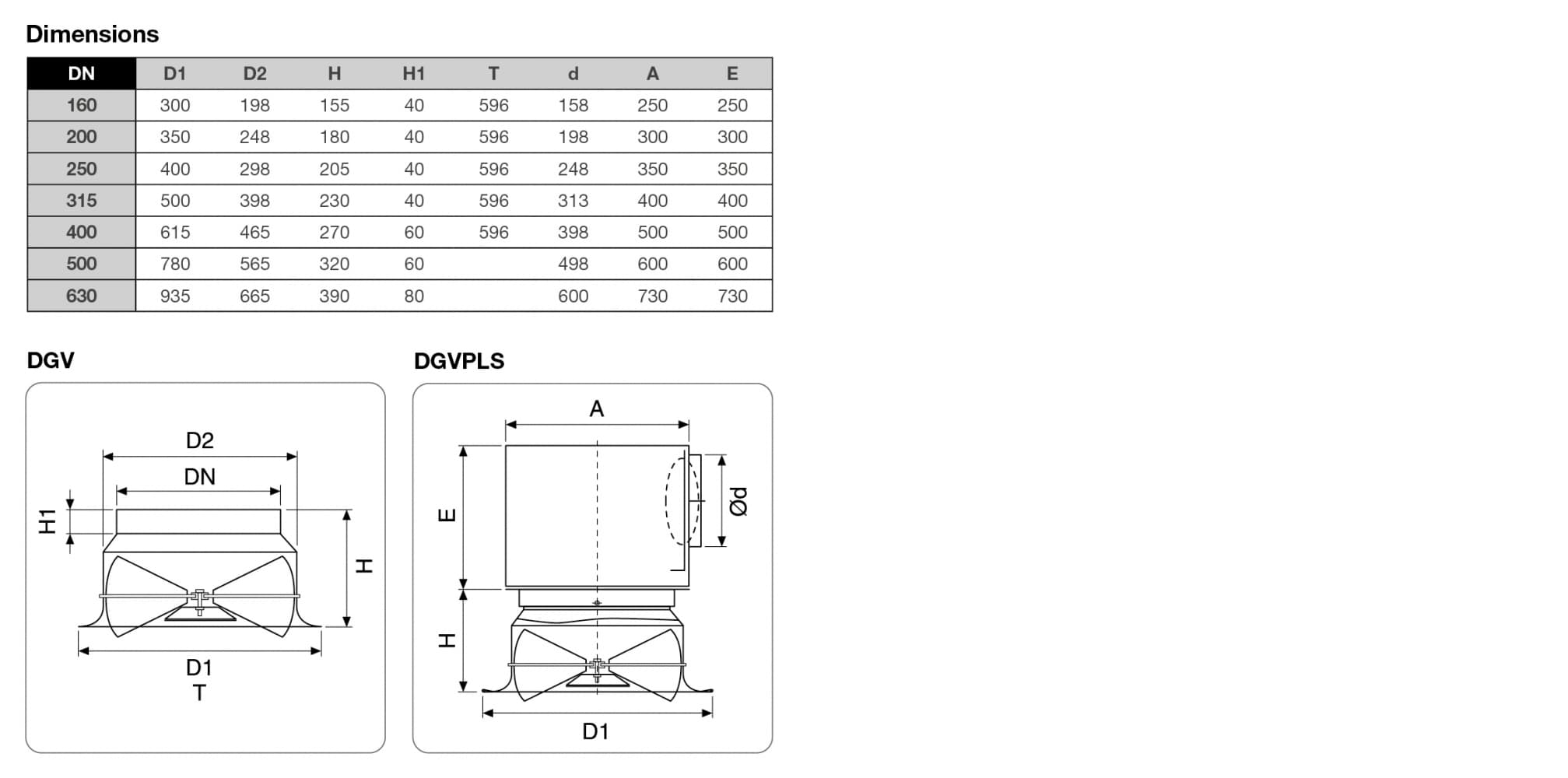

DGV: high induction diffuser

• installation height between 3 and 7 m
• individually adjustable blades
• external aluminium body, steel blades + equaliser
• RAL 9010 finish

DGVA: like DGV but with synchronised movement of the blades

DGV....T: including 596x596 panel for installation on false ceiling

Accessories

R1: with proportional actuator 0÷10V, 24V

R2: with on-off actuator, 24V

R3: with on-off actuator, 230V

PL: side entry plenum

I: external insulation reaction to fire class B-s2-dO

S: damper on entry 160/315 - 400/630

DGVA-ATS: thermostatic actuator

Special versions

VR: coating according to RAL 9005 / 9006 table

Other RAL colours on request
