Description

ECA 8M F: extractors centrifugal box fans

• fan with forward inclined blades, double intake with directly coupled motor, EC with permanent magnets with built-in electronics
• structure made of aluminium profiles, galvanised steel panels
• internal insulation with class 1 acoustic panel
• G4 + F7 filter system with constant flow operation
• integrated solution
• maximum efficiency
• plug and play
• configuration not required
• low noise levels
• high reliability
• “Drive-sensor - Less” mounted directly on the fan casing, with integrated PFC and protection against voltage drop, for a configuration-free plug and play system

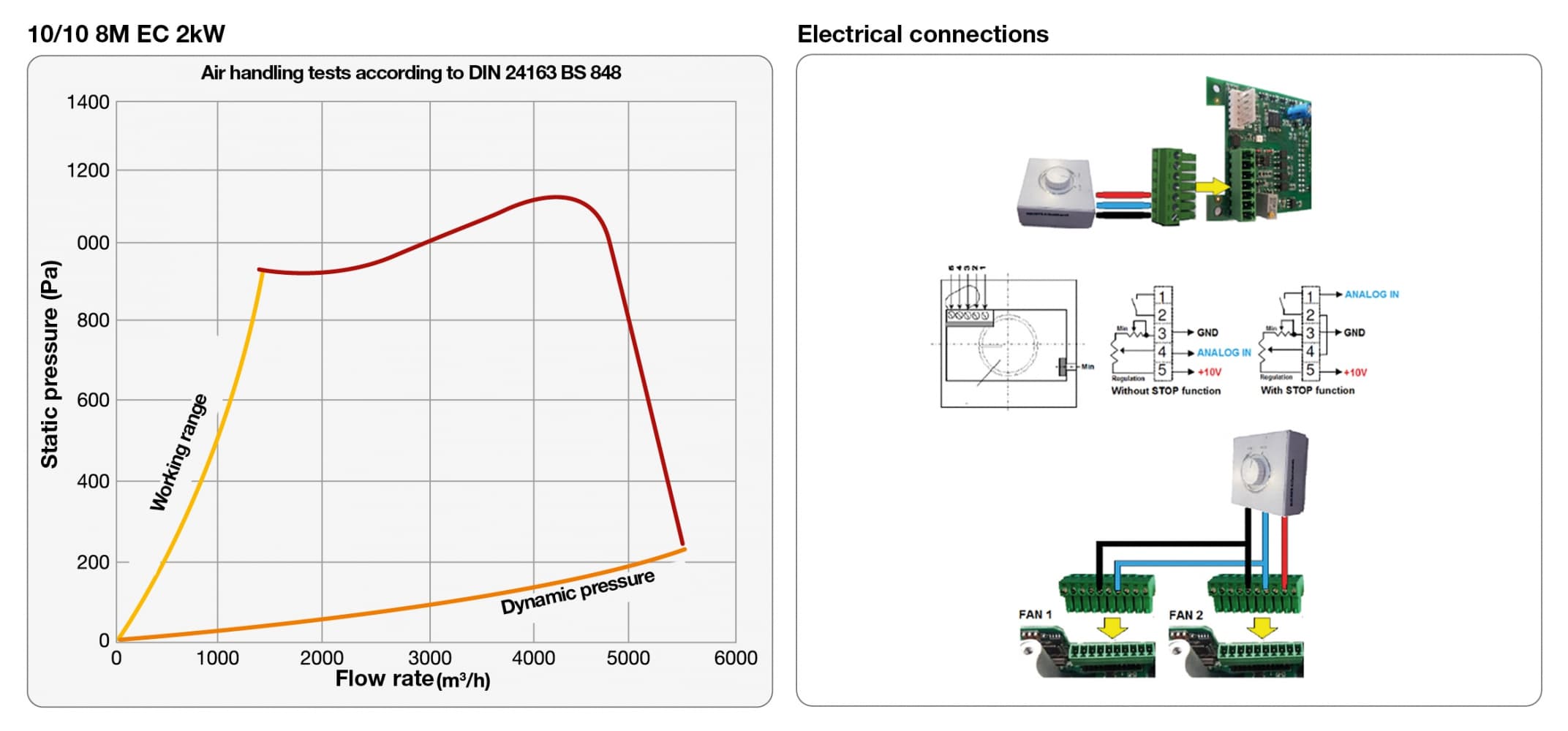

• continuous control of speed variation via a 0-10 Volt signal from potentiometer or with Modbus RS485 compliant interface
• fan with IP44 protection IP 44 rating, Drive with IP 54 protection rating

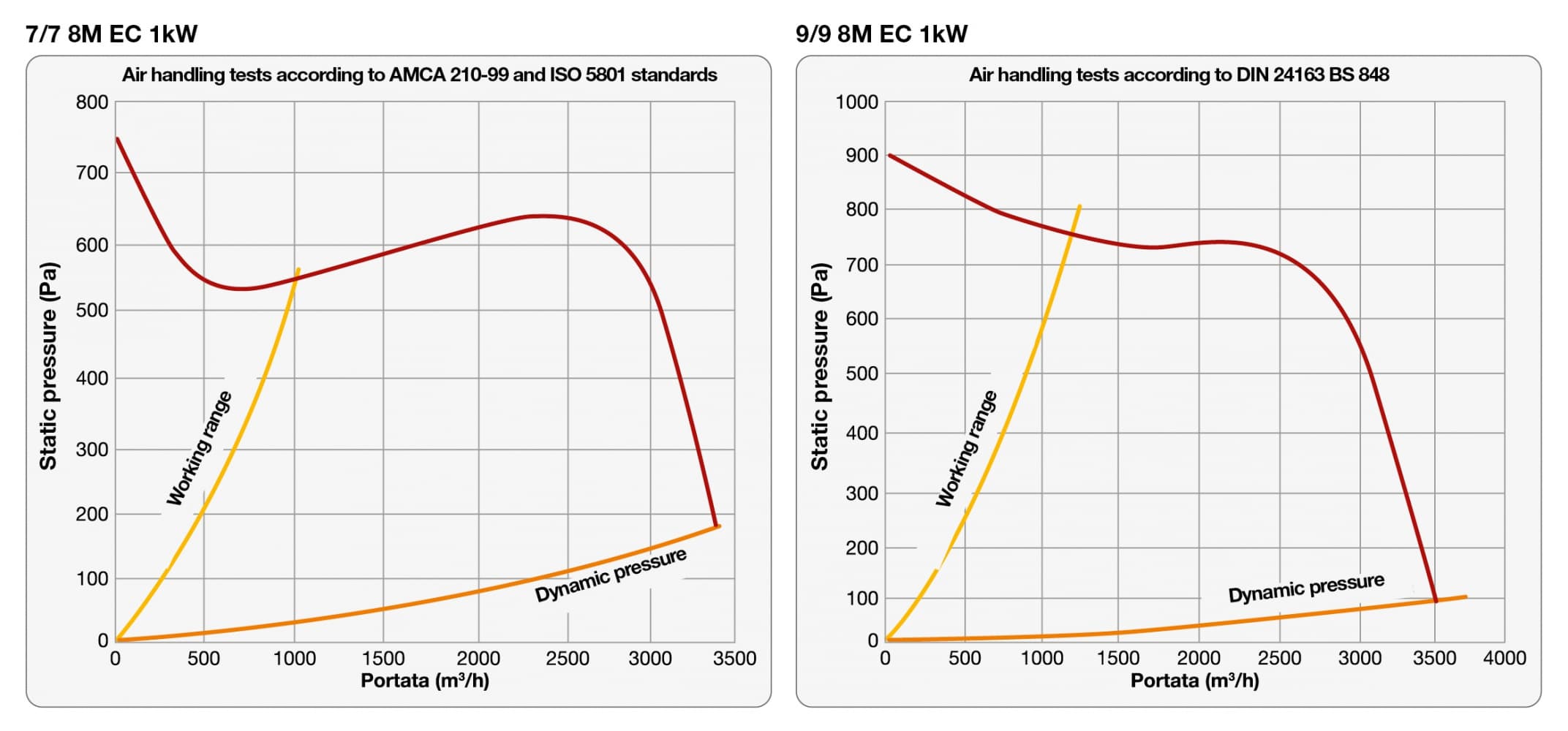

• performance in line with AMCA 210-99 and ISO 5801
• dynamic balancing according to ISO 1940
• working temperature –20°C / +40°C

Accessories

PA: support feet

MR: protective mesh casing

TPE: rain protection cover for exterior

P: potentiometer 0-10V

Special executions

• double panel execution (on request)
• constant pressure execution (on request)

How it works

Through the 0-10 Volt signal from either the adjustment or the potentiometer, the constant flow system allows you to find the correct working point that our system needs. Once the working point has been identified, the electronics on the fan will keep the flow rate constant until the maximum head is reached.
