Terminal air diffusers with absolute filters

CPFS

Terminal air diffusers with absolute filters for air flows in one direction

Description

CPF: absolute filter holder box, in sheet metal, th. 1 mm with RAL 9010 epoxy coating

  • special stop to seal the absolute filter, tightened by non-deformable corners
  • volume control damper operated from the front with filter installed
  • connections for measuring the differential pressure of the filter both from the side and front without removing the filter
  • leakage tests according to EN 1886/2006

CPFS: side connection

CPTS: top connection

CPFS...F: with perforated diffusers side connection

CPFS...F: with perforated diffusers top connection

CPFS...F: with swirl diffusers side connection

CPFS...F: with swirl diffusers top connection

Special executions

CPFX: execution in AISI 304 stainless steel

CFFA: execution in airtight aluminium

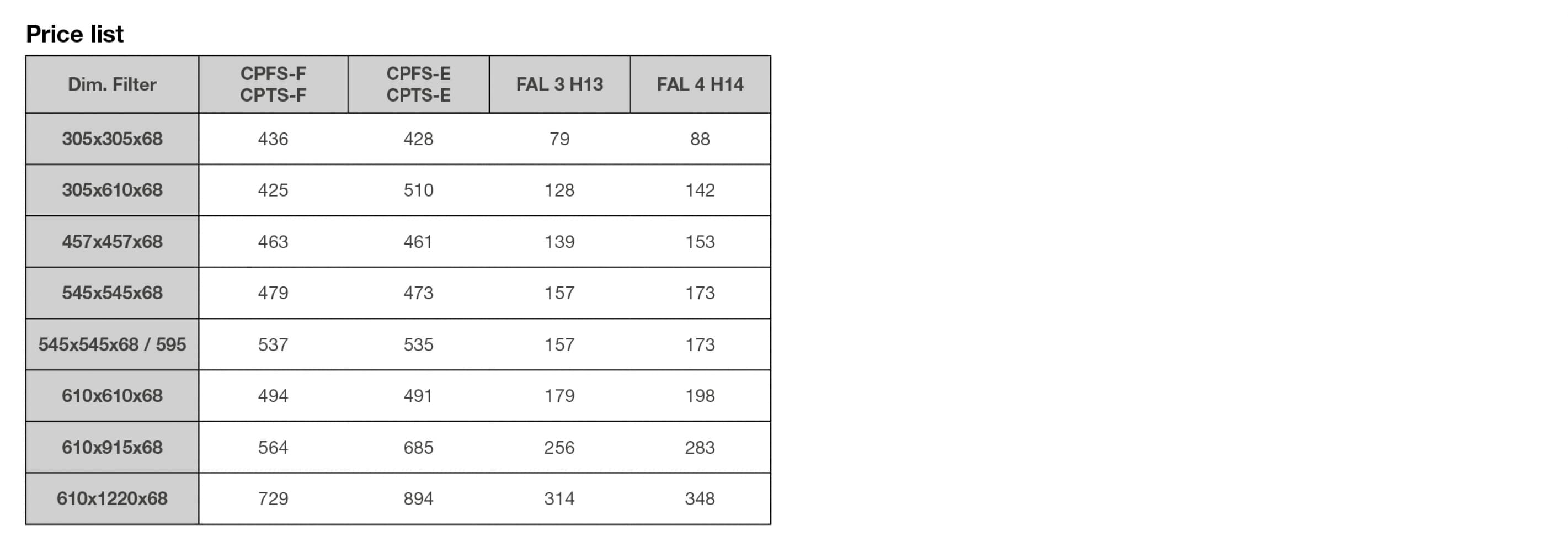

All prices are list prices for local market, for a quotation please contact us.
