Drop separators

SG 40 - SG 41X-KSN

Description

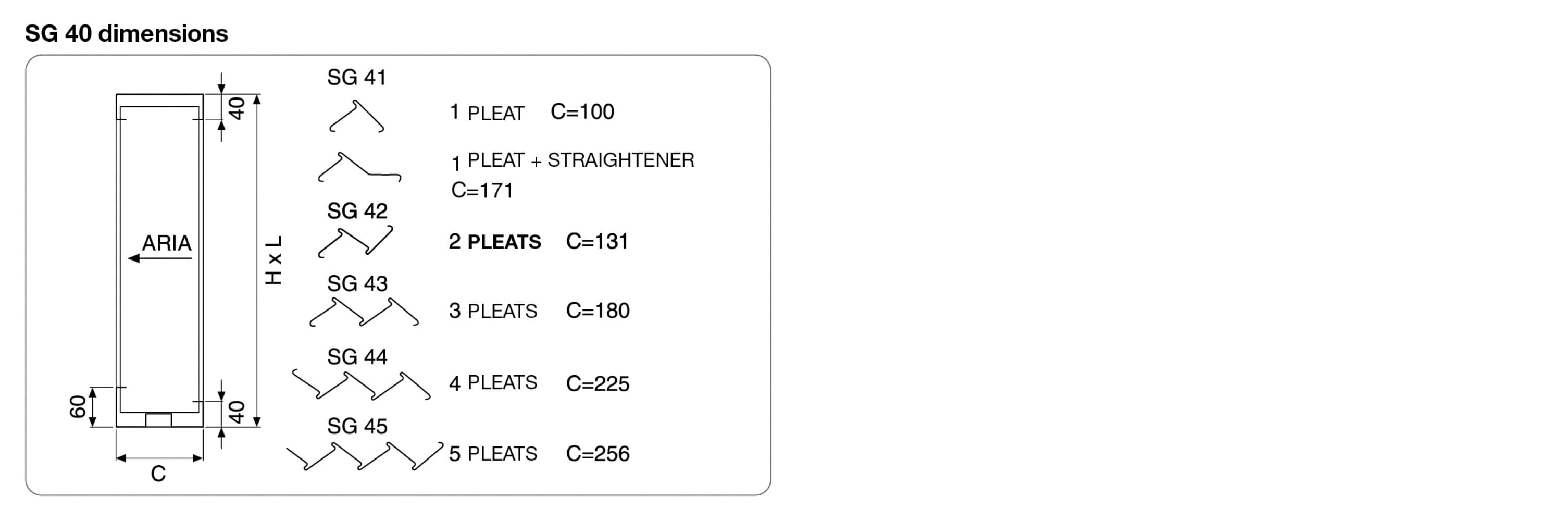

SG 40: Drop separators pitch 40 mm in galvanised steel

  • execution: galvanised steel frame th. 15/10 mm
  • galvanised steel blades th. 6/10 mm
  • models with 1-5 pleats

SG 41 R: execution with 1 pleat and equaliser

SG 43 R: execution with 3 pleats and equaliser

SG40X: execution in AISI 304 stainless steel

SG40XX: execution in AISI 316 stainless steel L

Special executions

SG41R-KSN: with anti-freeze heating cables, for ATEX, SAFE zone; 1000 W/m2 power with 40 W/m cables and surface temperature of 10°C

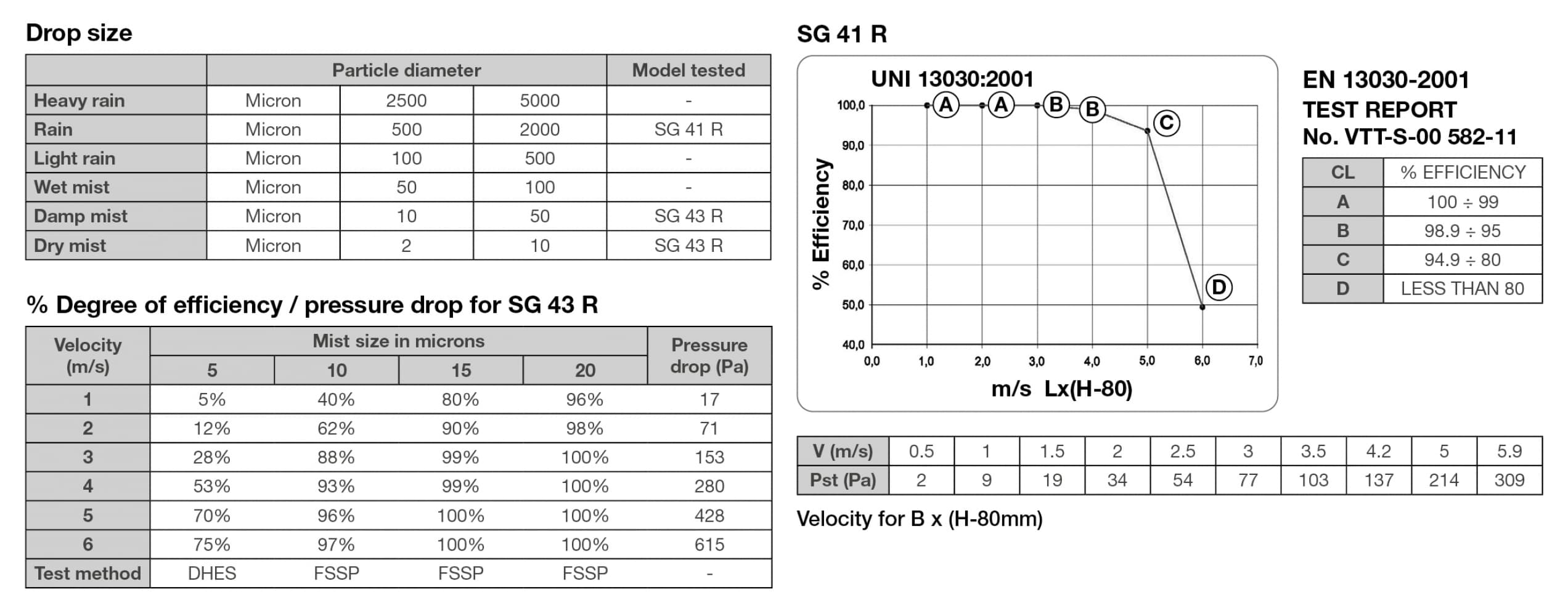

Tests carried out on the following models

SG41R: efficiency and pressure drop according to EN 13030-2001 (removal of simulated rain) carried out at VTT

SG43R: pressure drop according to EN 13030-2001; efficiency for particles between 10 and 50 micron at VTT in collaboration with FMI (Finnish Meteorological Institute)

SGA 40: drop separators pitch 40 mm in aluminium

  • execution: frame in Peralluman aluminium alloy 5754 th. 20/10 mm
  • blades in aluminium alloy 1050 th. 7/10 mm
  • models with 1-5 pleats

SGA 41 R: execution with 1 pleat and equaliser

SGA 43 R: execution with 3 pleats and equaliser

SG40PA: execution ENTIRELY in Peralluman with blades th. 1 mm

Special executions

SGA41R-KSN: with anti-freeze heating cables, for ATEX, SAFE zone; 1000 W/m2 power with 40 W/m cables and surface temperature of 10°C

Tests carried out on the following models

SGA41R: efficiency and pressure drop according to EN 13030-2001

(removal of simulated rain) carried out at VTT

SGA43R: pressure drop according to EN 13030-2001; efficiency for particles between 10 and 50 micron at VTT in collaboration with FMI (Finnish Meteorological Institute)

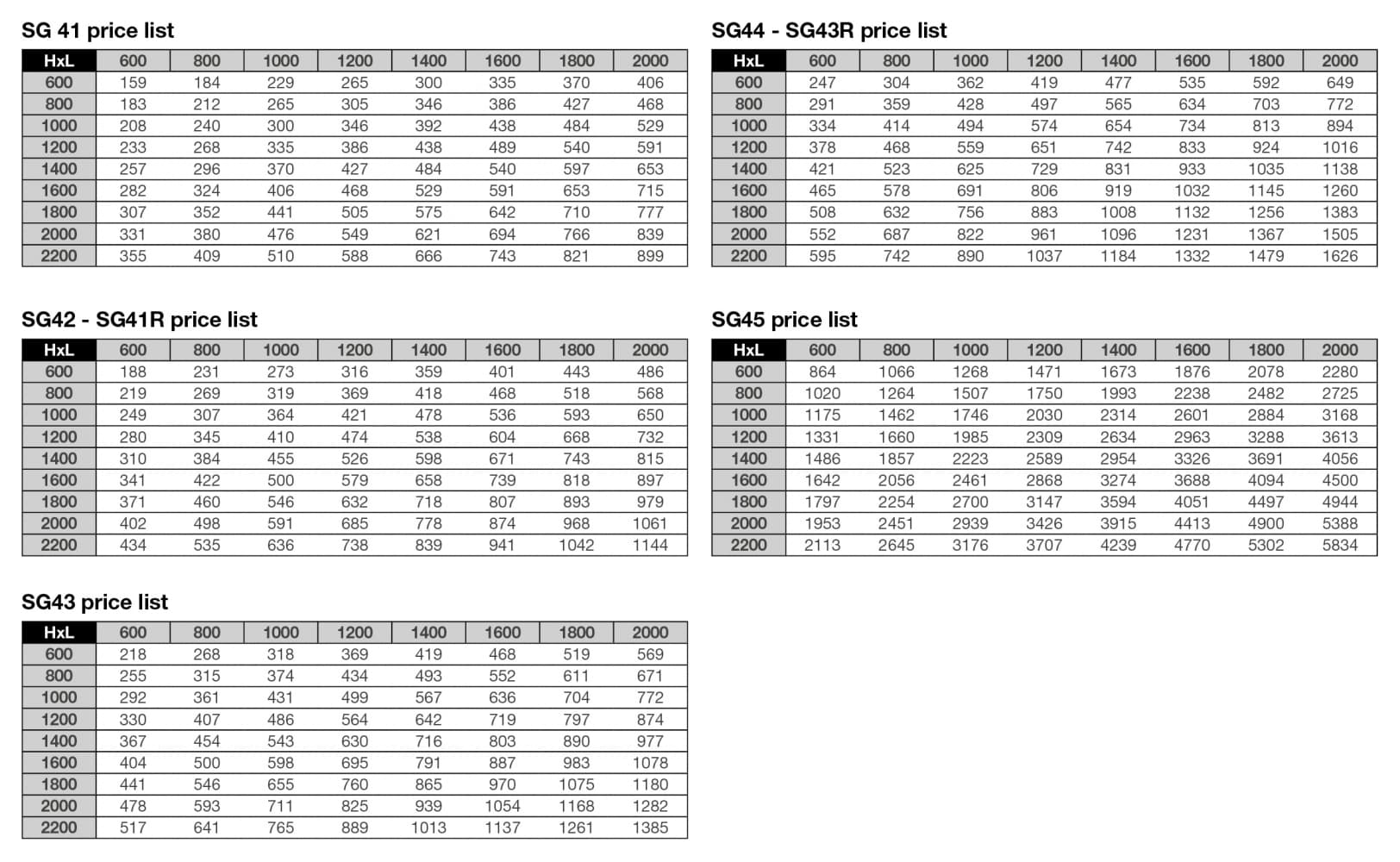

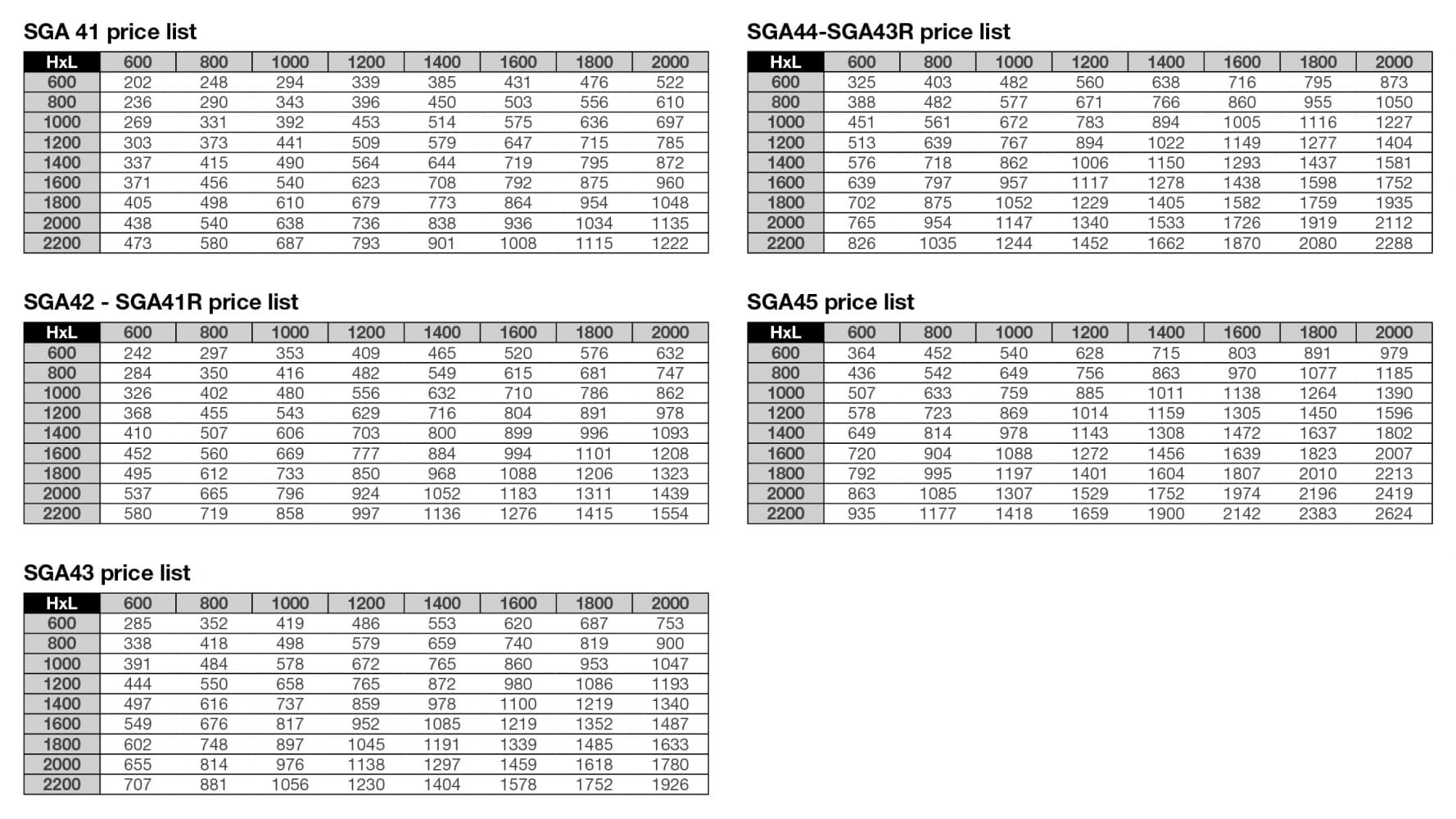

All prices are list prices for local market, for a quotation please contact us.
