Description

ES: steam humidifiers operating with the principle of the electrodes immersed in not-demineralised water

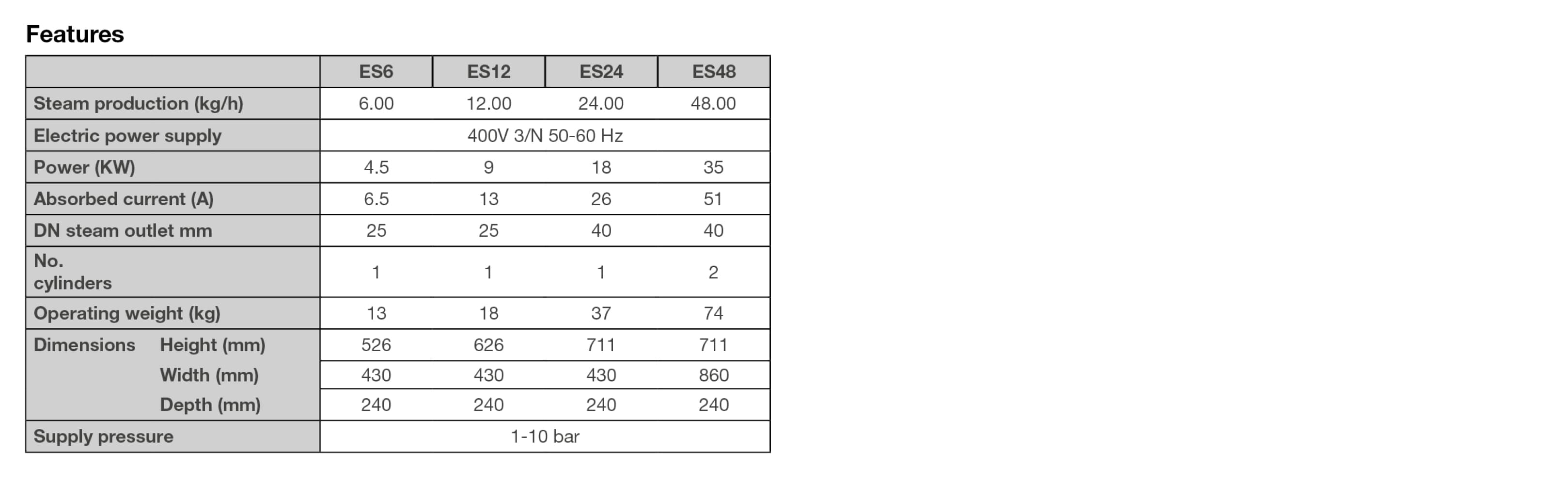

• production from 2 to 48 kg/h.

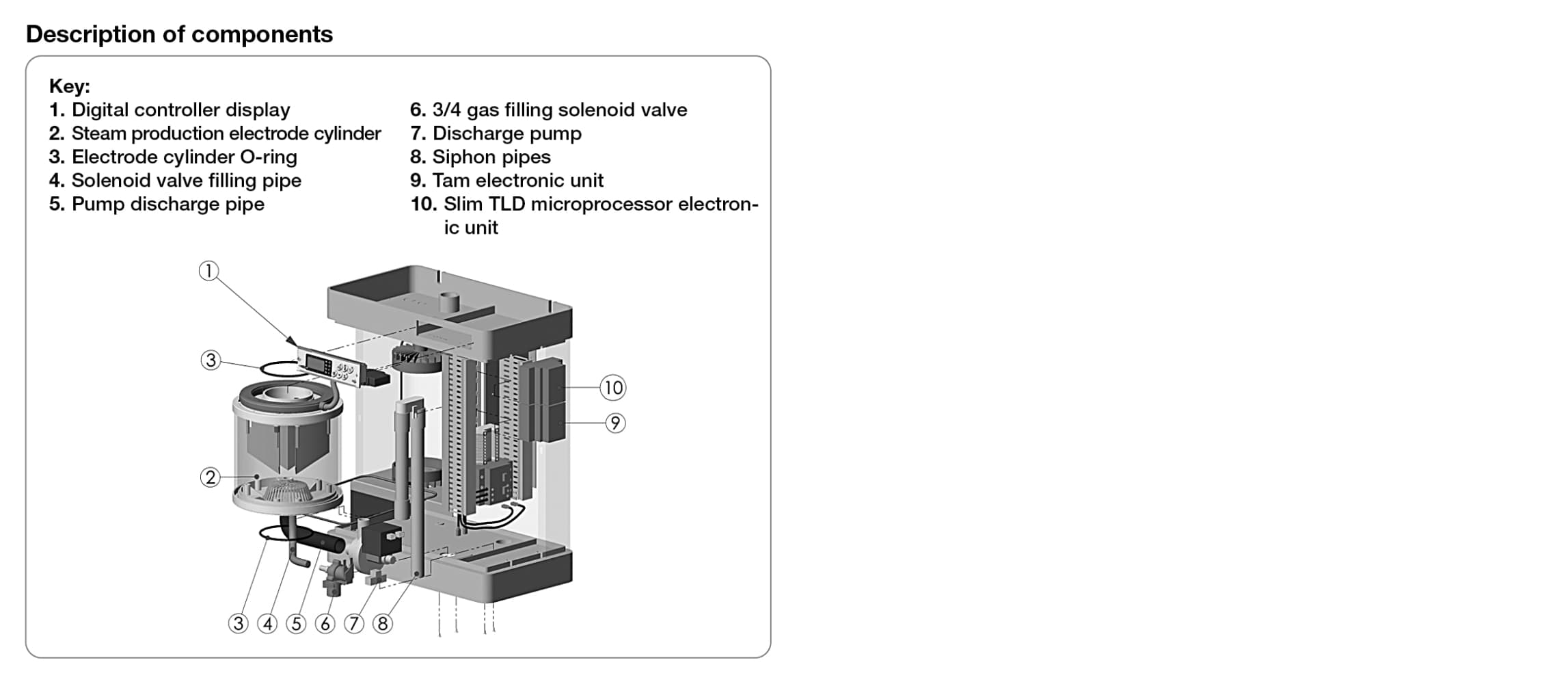

Construction features

• structure in AISI stainless steel and polypropylene
• ON-OFF operation, proportional 0-10V and with integrated humidistat for humidity probe (4..20 m A same device)
• electronic microprocessor control that can be interfaced with DDC
• display for reading and programming work data
• level probe
• draining during stand-by
• water fill solenoid valve
• water drain pump with pre-set automatic functions to increase the life of the machine
• non-toxic polypropylene cylinder with stainless steel electrodes (easily to replace)
• possibility of re-calibrating steam production up to 20%
• operating test on each single machine

Conformity

The product complies with the following directives and standards: 72/23 and 89/336 EEC EN 50081-1, 50082-1, 60335-1

Accessories

L250/L1000: steam distributor with L = 250 / 1000 mm with DN 25 or 40 mm made of AISI 304/316 stainless steel with automatic condensate return

TV: steam pipe DN 25 – DN 40

CL...: spare cylinder complete with electrodes

• the following spare parts are also available at our service centre:

- pumps

- valves

- electronic boards, etc.
