Description

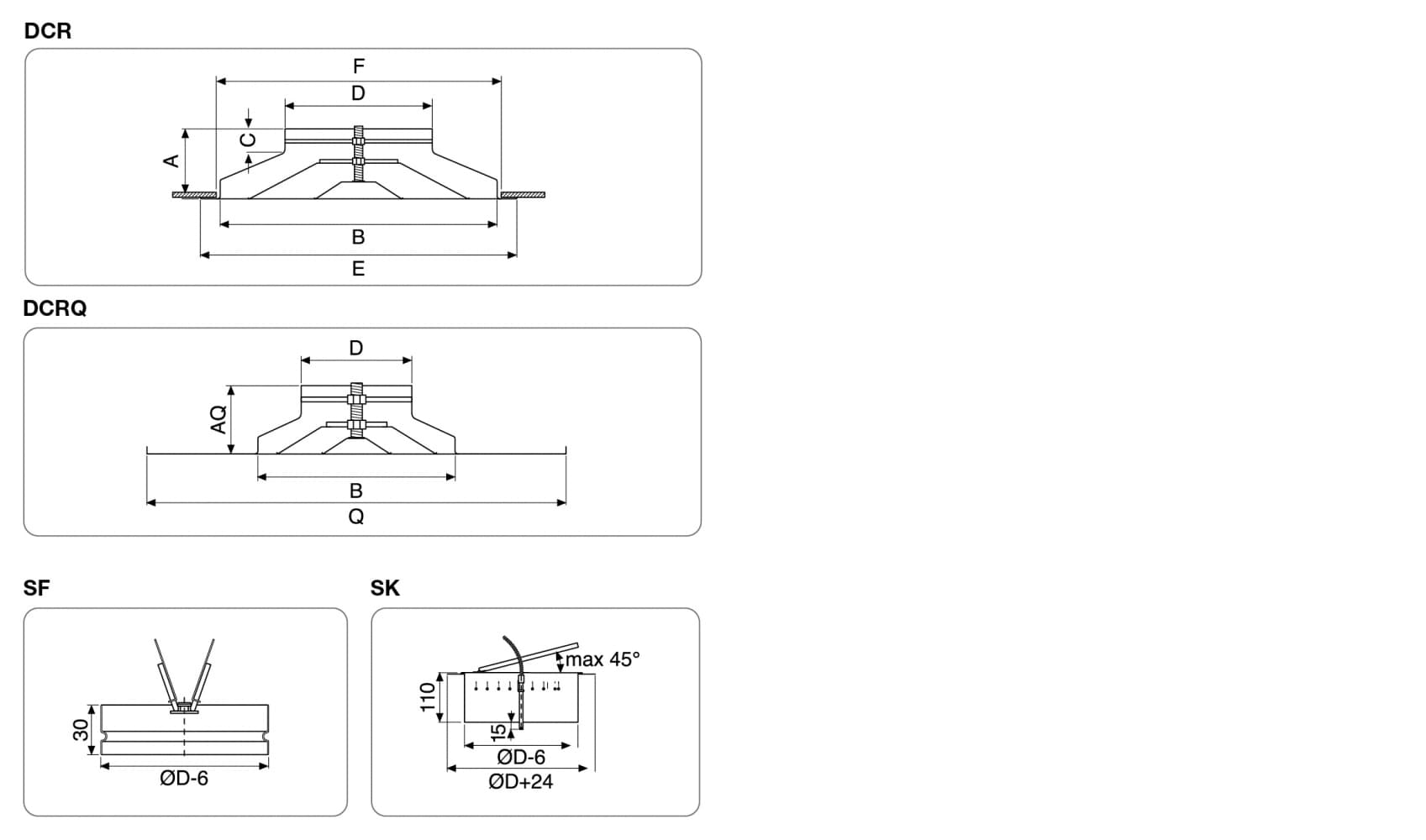

DCR: diffuser with adjustable cones

• adjustment with micrometric screw
• removable central cones for easy assembly
• made of aluminium with RAL 9010 finish
• mounting height between 2.8 and 6 m

DCRQ: like DCR but with 596x596 panel

Accessories

SF: butterfly damper

• 2 blades up to 315 diameter (not for thermostatic actuators)
• 4 blades for bigger diameters (not for thermostatic actuators)

E: equaliser

SK: deflector flap damper + equaliser (on request)

KD: plasterboard false ceiling fastening kit

DCRQ-ATS / DCR-ATS: thermostatic actuator

Special version

VR: coating according to RAL 9005 / 9006 table

Other RAL colours on request
