VDI 6022 hygienic standard

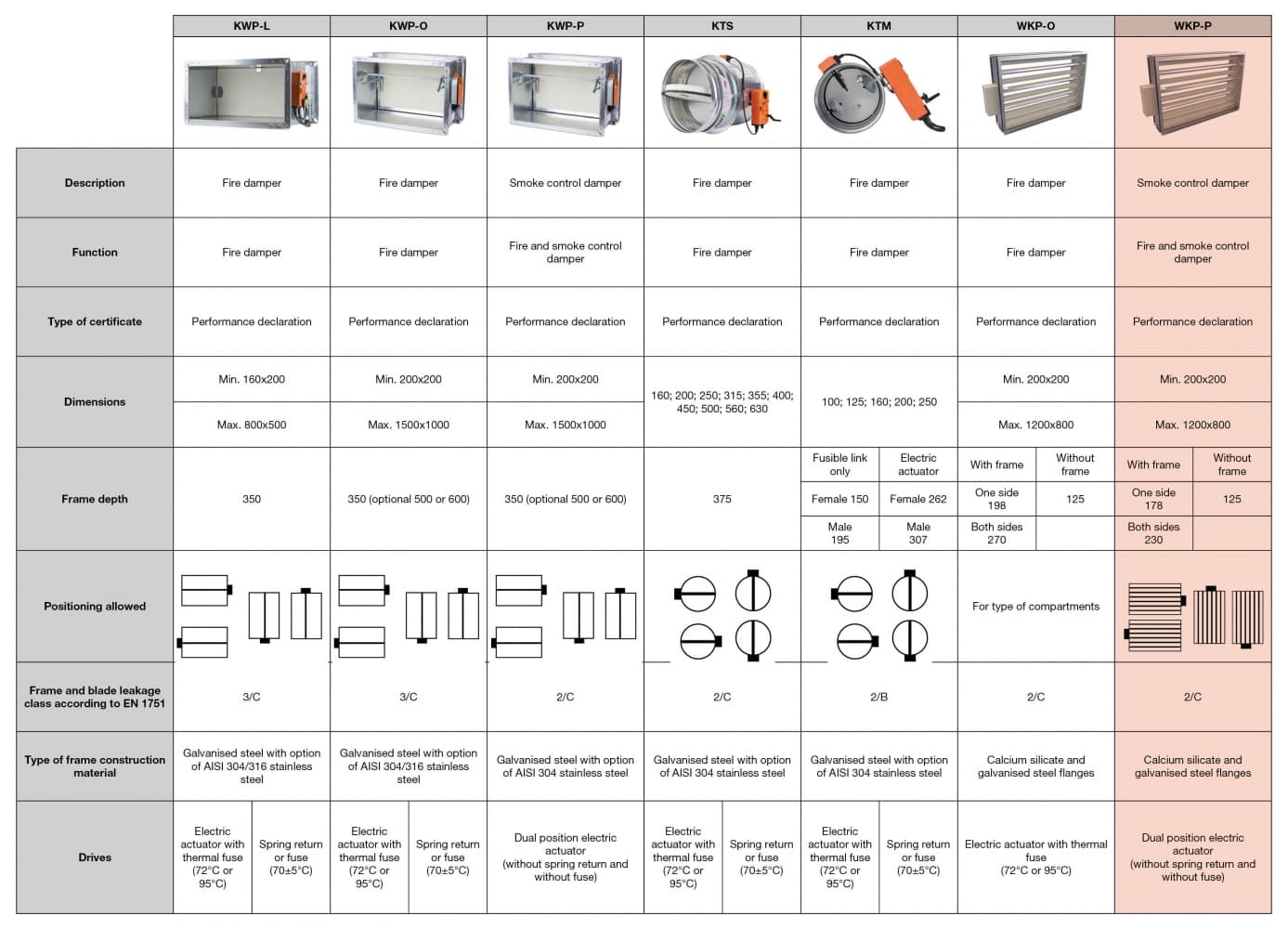

Description

EI 120 S multiple blade smoke control dampers according to UNI EN 1366-2 e UNI EN 1366-10 (tests for smoke control), UNI EN 13501-4 and UNI EN 12101-8 classification

Performance certificate no. 2434-CPR-0285

CE marking - VDI 6022 hygienic certificate

• Construction: Z275 galvanized steel frame with silicate fibre interposed, 30 mm flanges for ducting connection, counter blade movement, made of silicate fibre and fastened by bolts, intumescent gasket both on the blades and damper frame. Cold smoke sealing gasket
• Vertical installation
• Leakage class C of the frame according to EN 1751

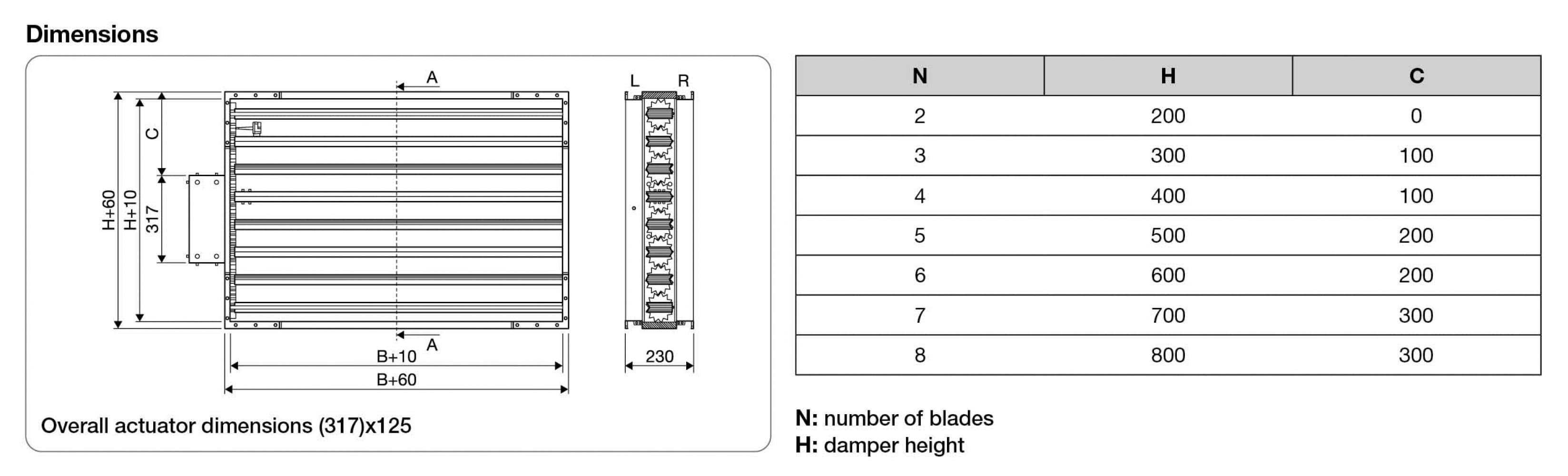

• Max dimension 1200x800
• Frame depth 230 mm

Fitted with:

• with electric on-off actuators, dual microswitches, 24V and 230V power supply

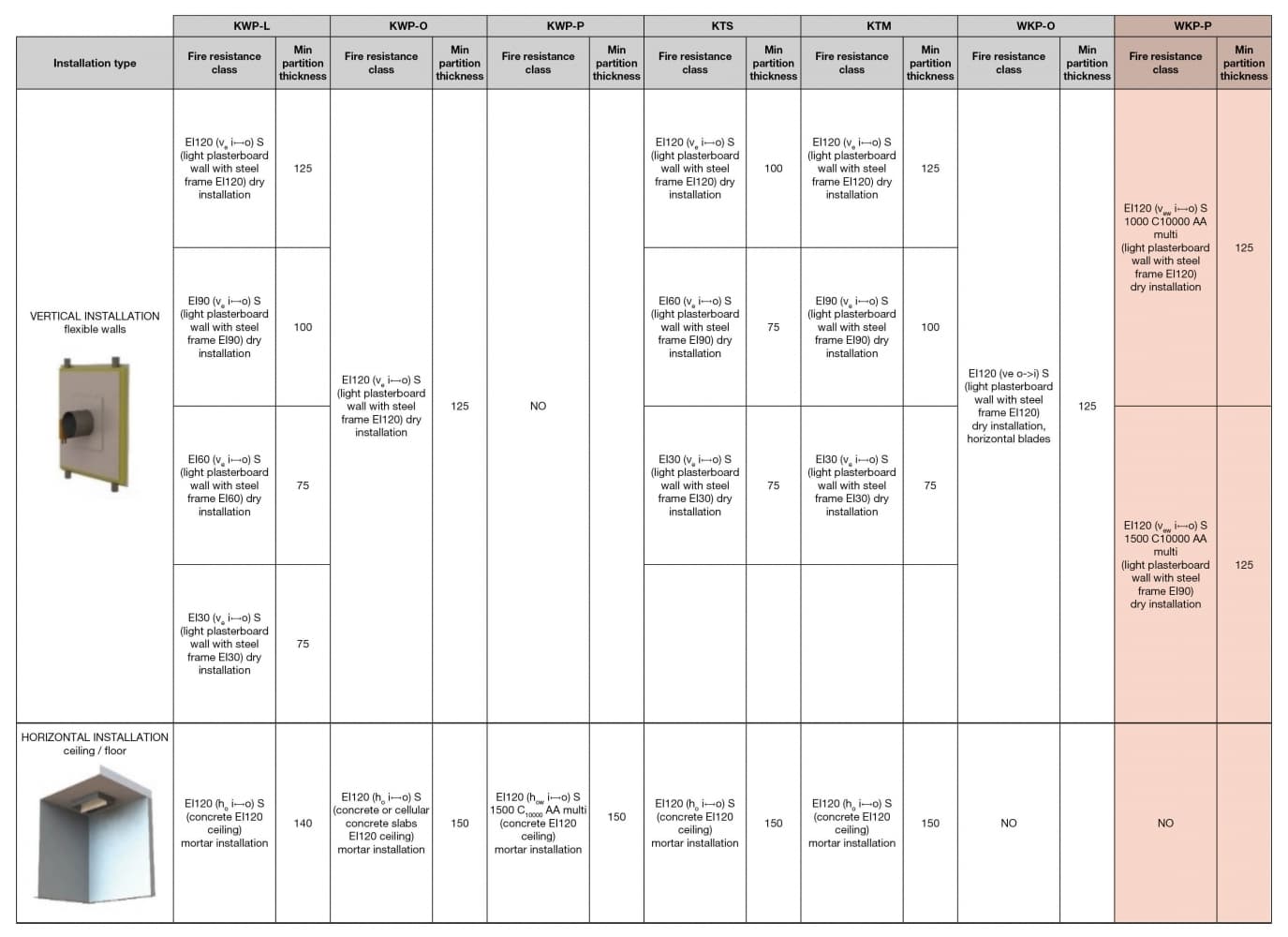

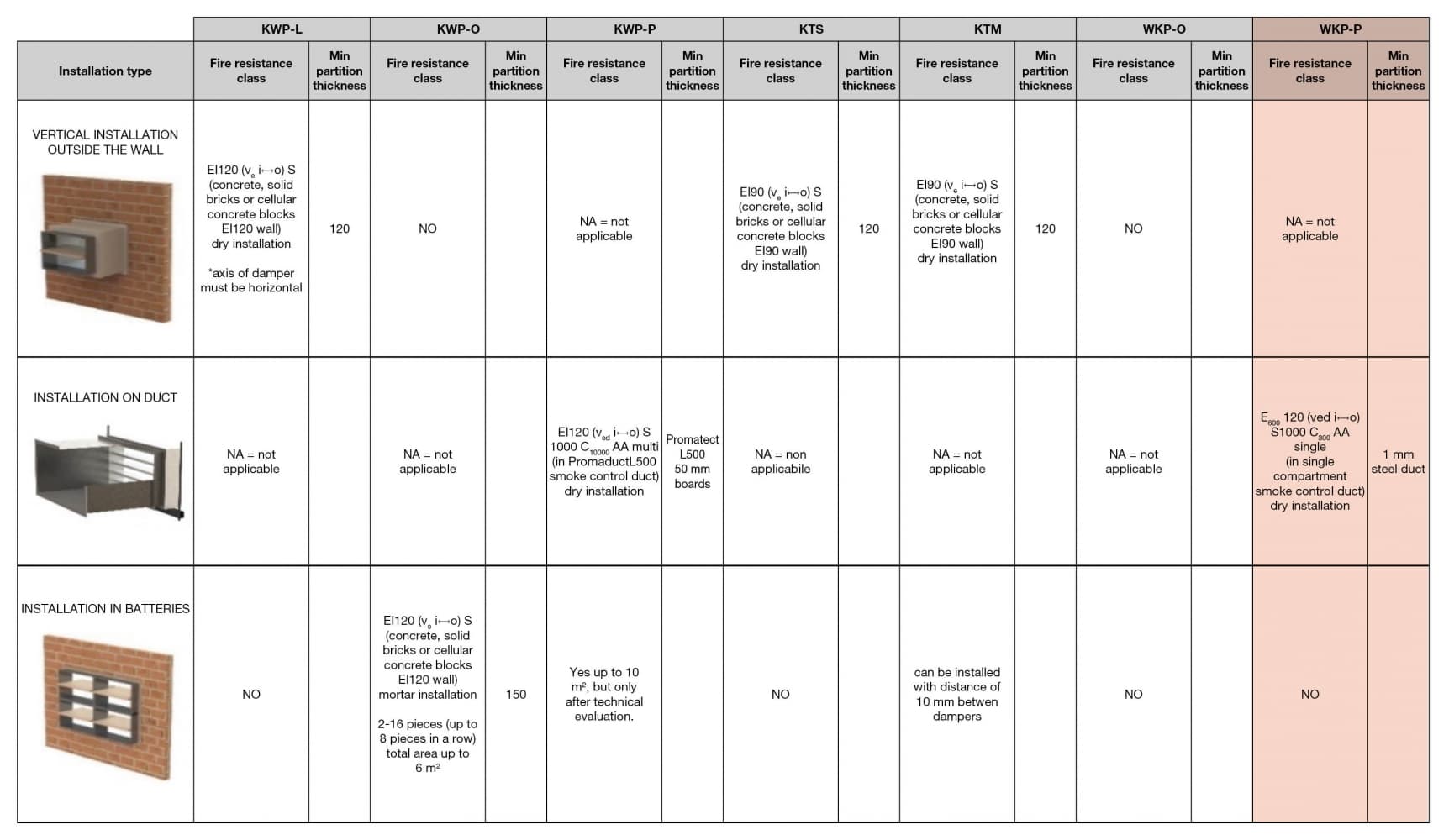

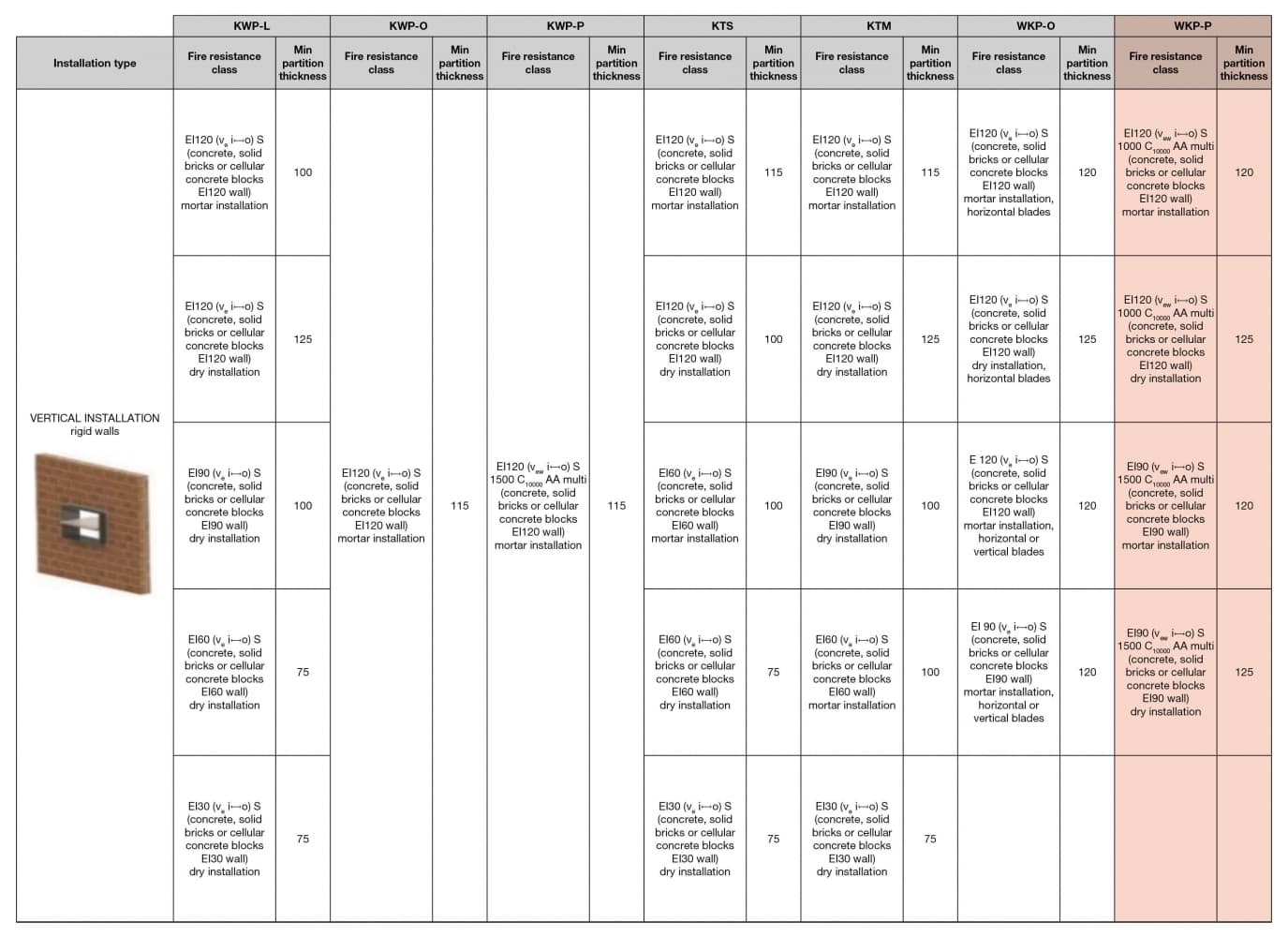

• Installations in ducts and masonry walls (120 mm or 125 mm plasterboard) with fire resistance classes EI 120 or EI 90

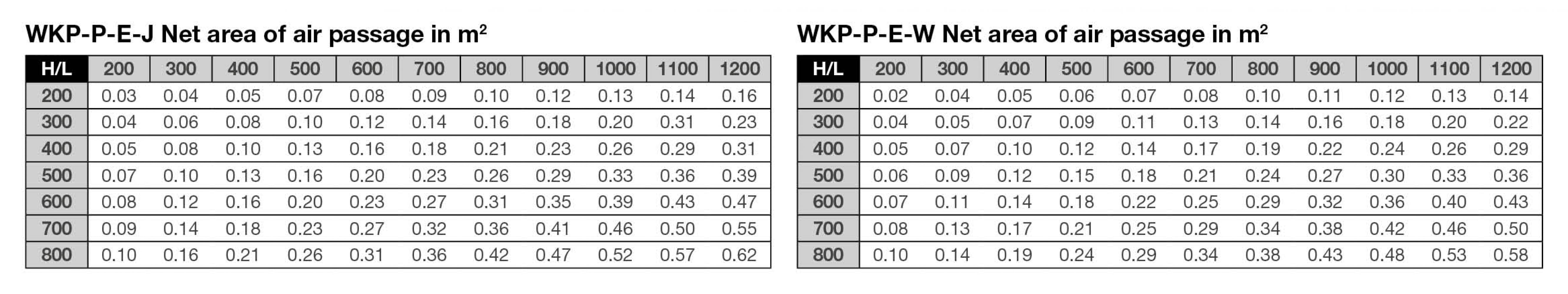

WKP-P-E-J

E₆₀₀ 120 (V_ed i ↔ o) S 1000 C₃₀₀ AA single - (Duct)

WKP-P-E-W

EI 90 (V_ew i ↔ o) S 1500 C_10’000 AA multi

EI 120 (V_ew i ↔ o) S 1000 C_10’000 AA multi

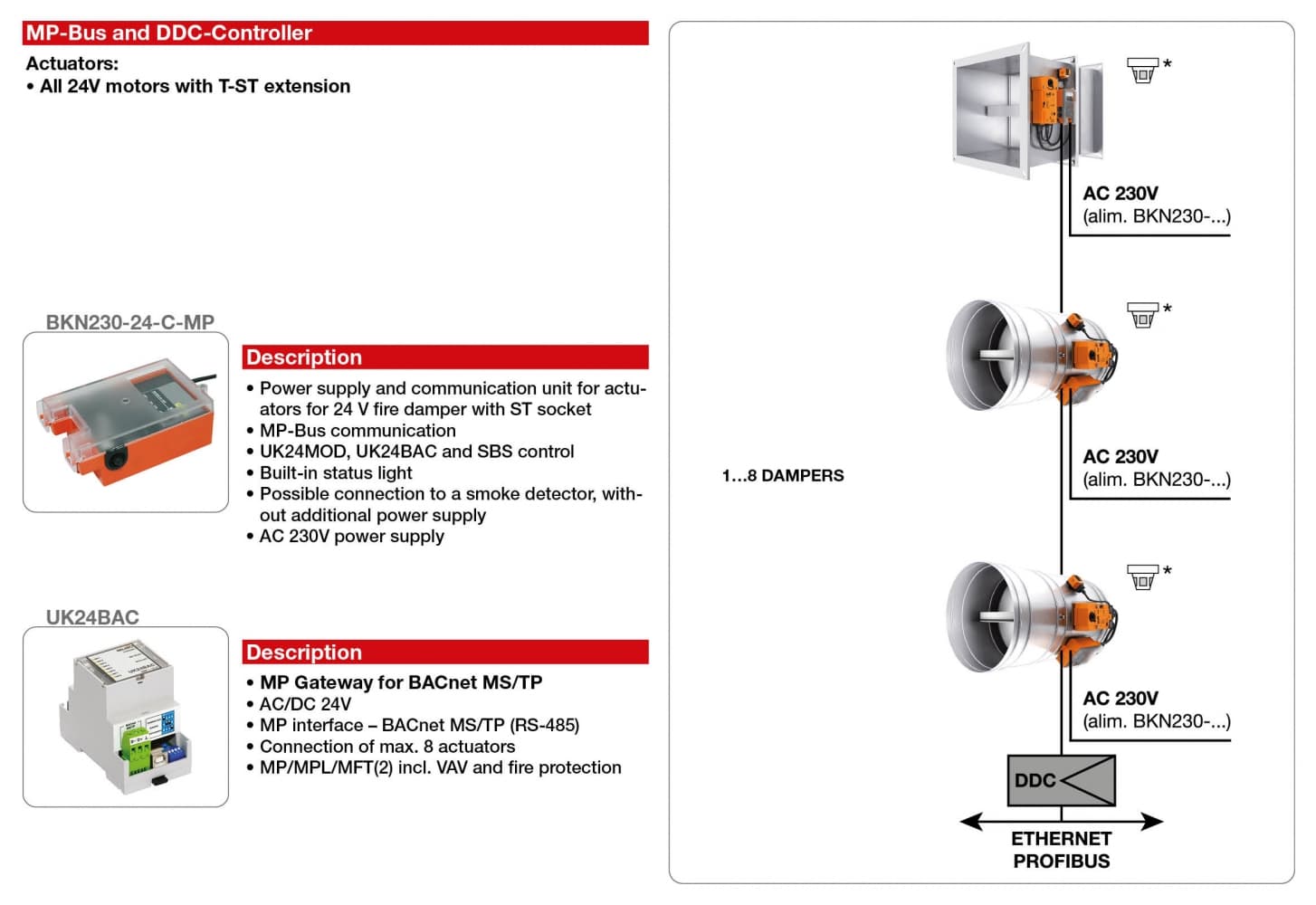

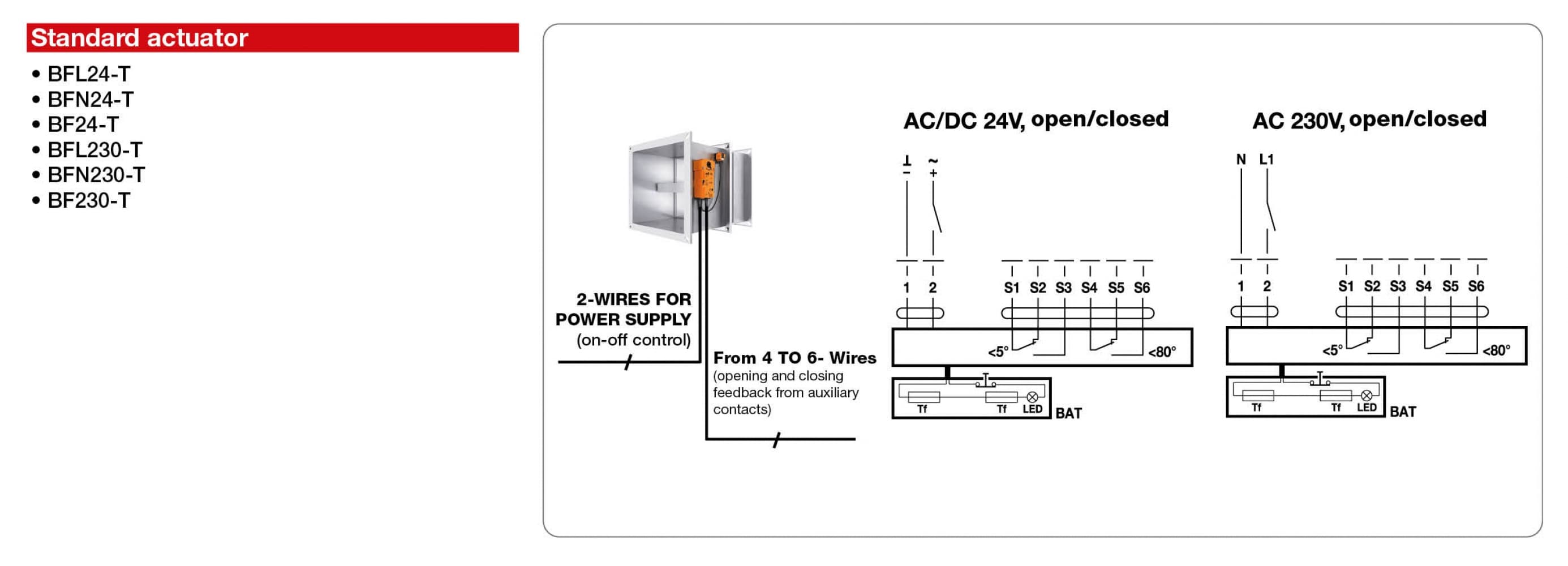

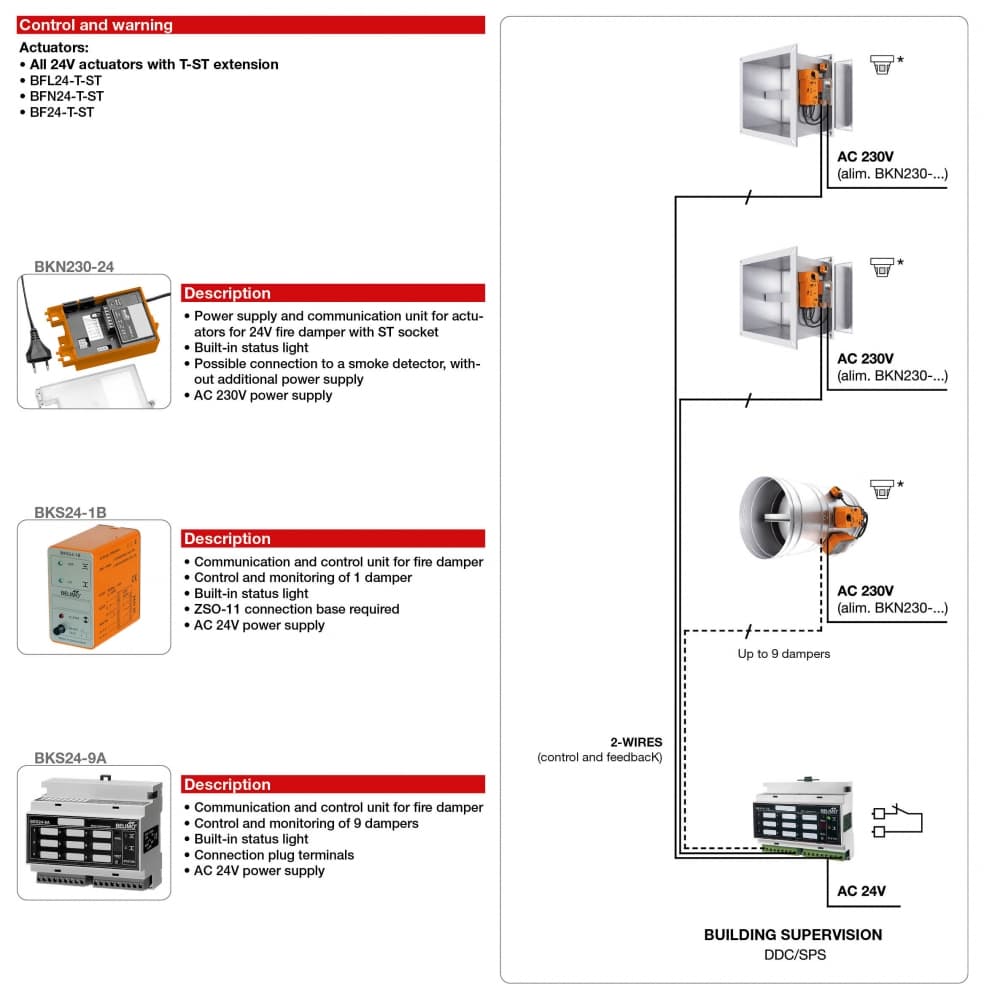

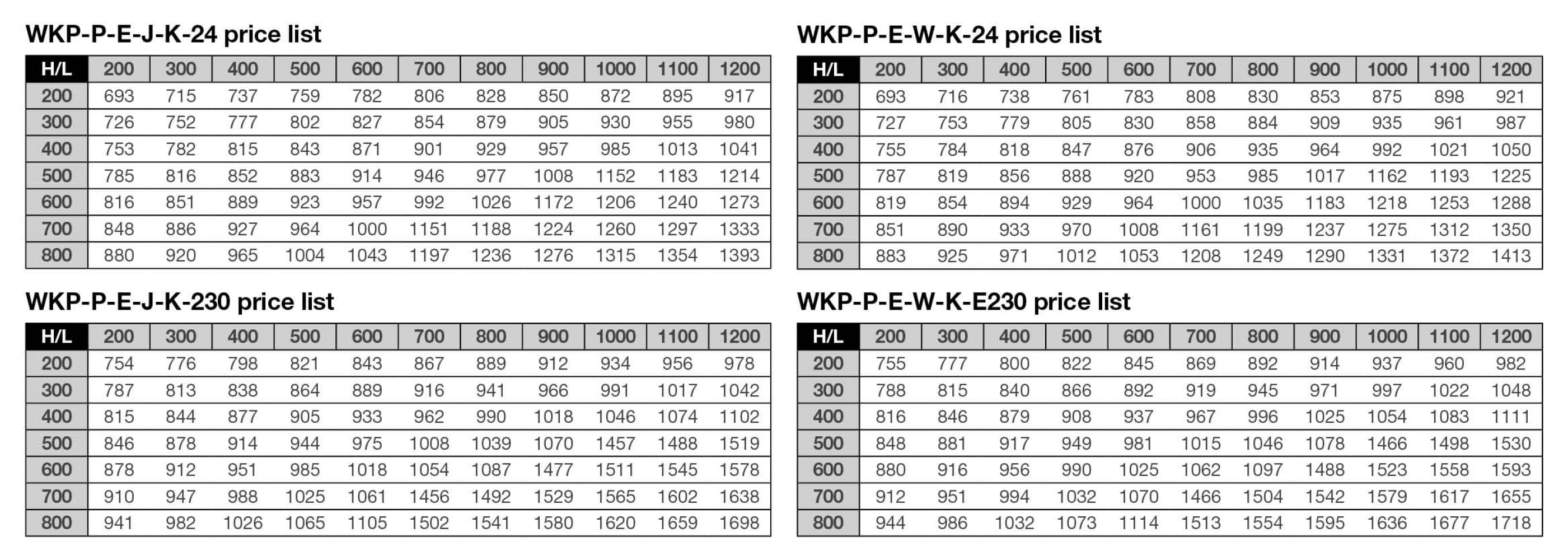

WKP-P-E-J-K 24: with on-off actuator and 2 opening and closing micro limit switches, 24V power supply

WKP-P-E-J-K 230: with on-off actuator and 2 opening and closing limit switches, 230V power supply

WKP-P-E-W-K 24: with on-off actuator and 2 opening and closing micro limit switches, 24V power supply

WKP-P-E-W-K 230: with on-off actuator and 2 opening and closing micro limit switches, 230V power supply

Special execution

KL: left side flange

KR: right side flange

T: without flanges only for version (WKP-P-E-W), frame th. 125 mm

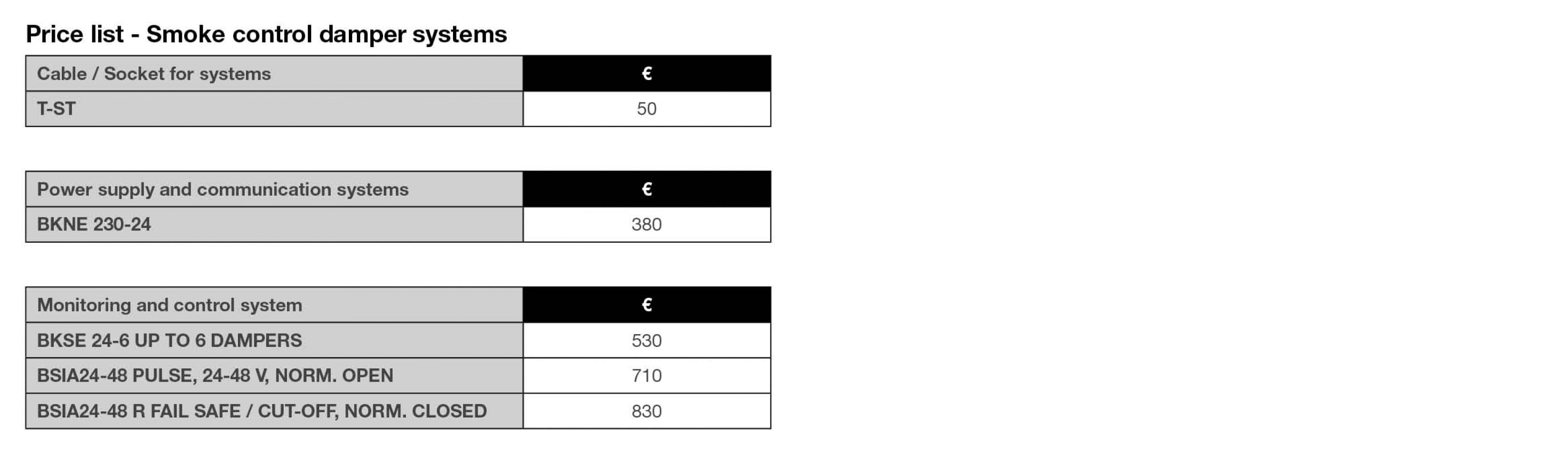

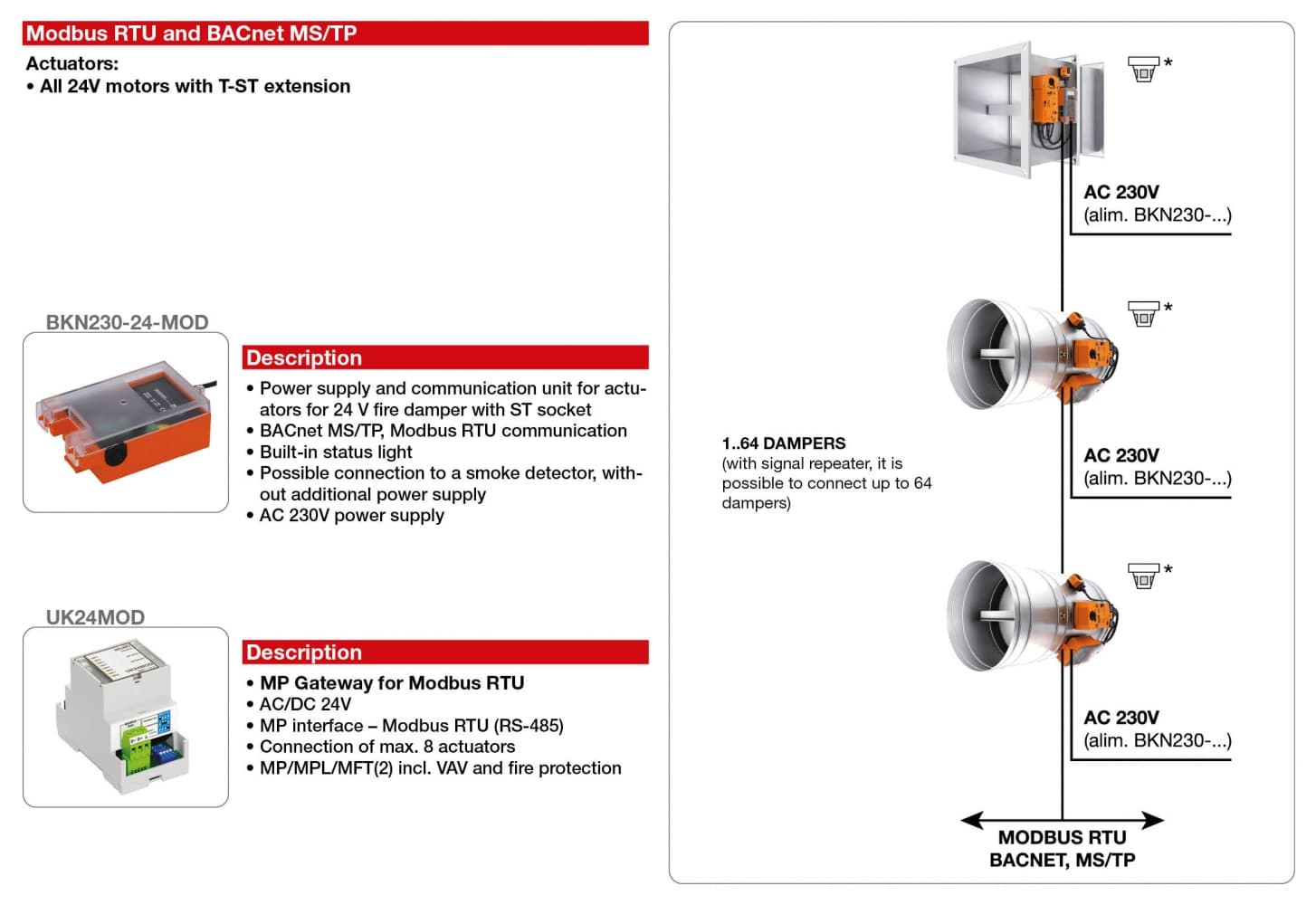

• Additional communication systemsù
